Brake Master Cylinder: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
Refer to: Battery Tray ( BATTERY TRAY ).

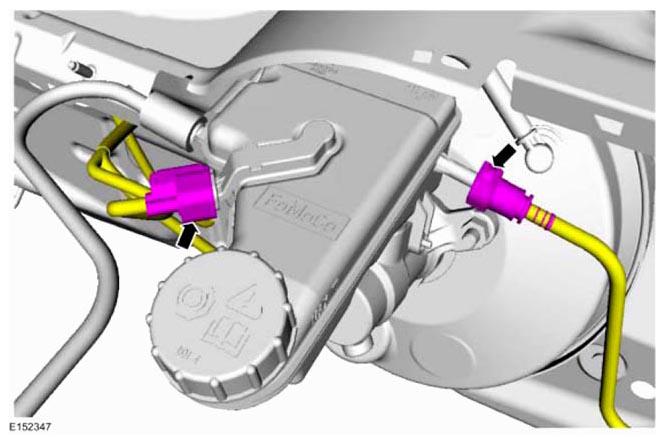

Fig 1: Locating Brake Fluid Level Switch Connector
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

Fig 2: Locating Brake Cable Nuts
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

Fig 3: Locating Brake Master Cylinder Bracket Nuts
Courtesy of FORD MOTOR CO.
