Brake Fluid Reservoir: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this section, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
Refer to: Brake Master Cylinder .

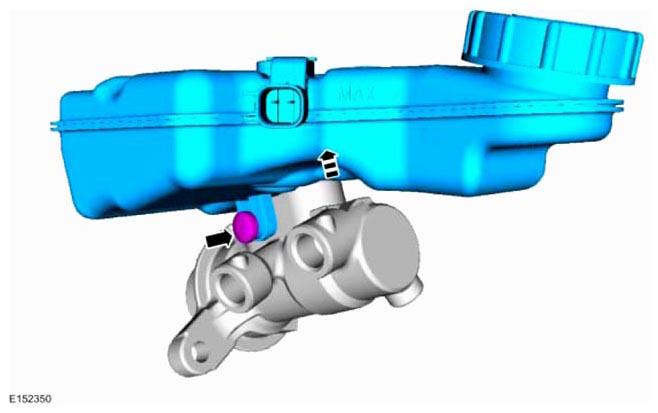

Fig 1: Removing Brake Fluid Reservoir
Courtesy of FORD MOTOR CO.

NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.

Fig 2: Locating Brake Fluid Reservoir Seals

Courtesy of FORD MOTOR CO.

Discard the specified component. Follow local disposal regulations.
Material : Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2) (ISO 4925 Class 6)
