Brake Shoe Adjustment

SPECIAL TOOL(S) / GENERAL EQUIPMENT

G08056029
 206-D002
Gauge, Brake Adjustment
  1. Refer to: Brake Drum  ).
  2. Using the special tool, measure the inside diameter of the brake drum.

    Special Tool(s)  : 206-D002 (Gauge, Brake Adjustment)

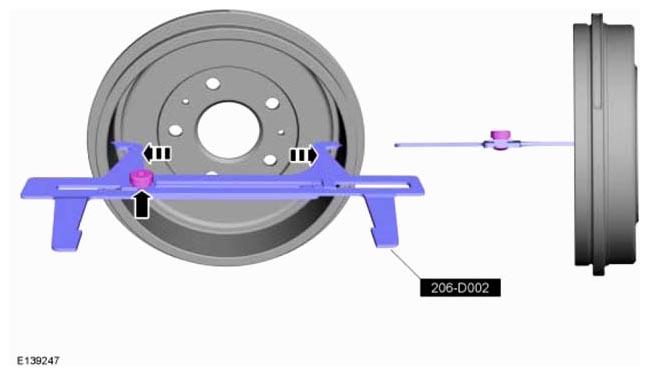

    Fig 1: Measuring Inside Diameter Of Brake Drum
    G08056030Courtesy of FORD MOTOR CO.
  3. Position the special tool on the brake shoes and linings and adjust accordingly.

    Special Tool(s)  : 206-D002 (Gauge, Brake Adjustment)

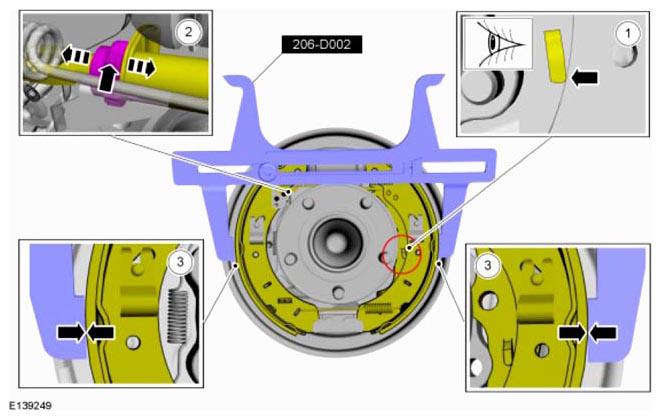

    Fig 2: Positioning Special Tool On Brake Shoes And Linings
    G08056031Courtesy of FORD MOTOR CO.
  4. Refer to: Brake Drum  .
