Compass Module: Removal

NOTE: Do not bend or crease the headliner during removal or installation. Failure to follow this will result in damage to the headliner.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Remove both A-pillar trim panels.
Refer to:A-PILLAR TRIM PANEL .

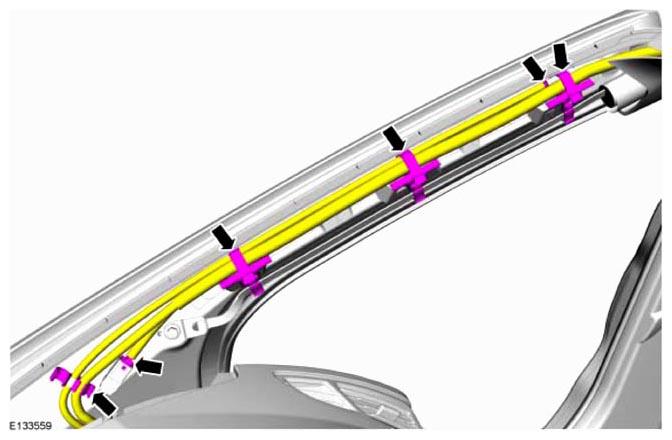

Fig 1: Locating Compass Module Wire Harness Clips
Courtesy of FORD MOTOR CO.
If equipped.

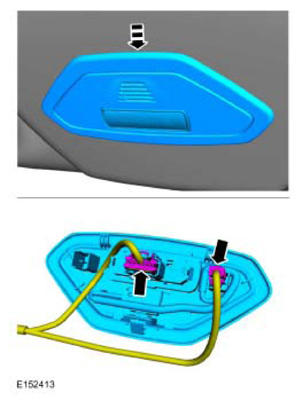

Fig 2: Removing Overhead Console
Courtesy of FORD MOTOR CO.
If equipped, remove the overhead console.
Refer to: OVERHEAD CONSOLE .
If equipped.

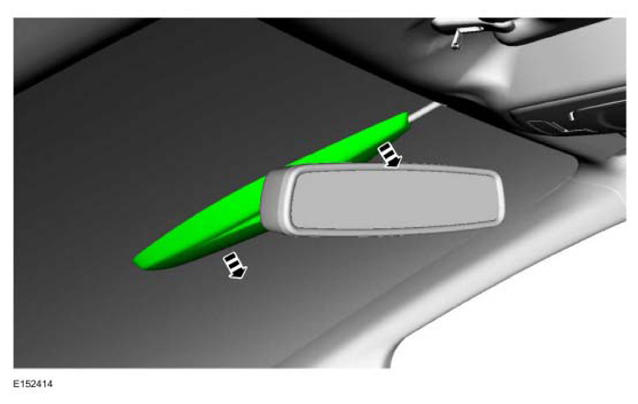

Fig 3: Removing Interior Mirror
Courtesy of FORD MOTOR CO.
If equipped.

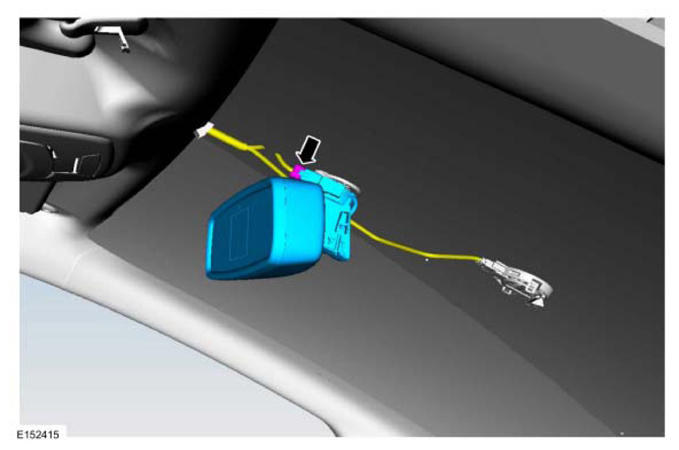

Fig 4: Locating Interior Mirror Wire Harness Connector
Courtesy of FORD MOTOR CO.

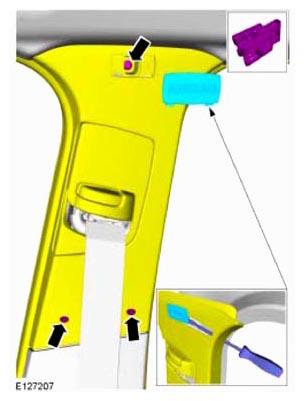

Position aside both upper B-pillar trim panels.

Fig 5: Locating Upper B-Pillar Trim Panels Fasteners
Courtesy of FORD MOTOR CO.
Remove both D-pillar trim panels.
Refer to: D-PILLAR TRIM PANEL - 5-DOOR .

Refer to: D-PILLAR TRIM PANEL - 4-DOOR .

NOTE: 4 door vehicles only.

Remove both upper C-pillar trim panels.
Refer to: C-PILLAR UPPER TRIM PANEL .
Remove both sun visors

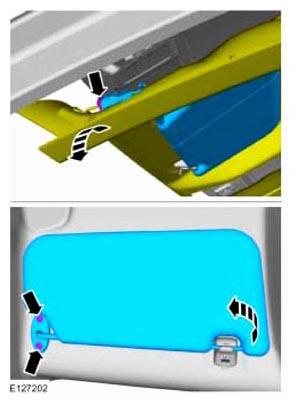

Fig 6: Removing Sun Vision
Courtesy of FORD MOTOR CO.

NOTE: Assist handle shown in illustration, garment hooks similar.

Fig 7: Removing Passenger Front Assist Handle And Rear Garment Hooks

Courtesy of FORD MOTOR CO.

Remove the passenger front assist handle and both rear garment hooks.

NOTE: 5 door vehicles only

Fig 8: Locating Rear Window Washer Hose

Courtesy of FORD MOTOR CO.

Disconnect and plug the rear window washer hose from the RH D-pillar.
NOTE: 5 door shown in illustration, 4 door similar.

Fig 9: Identifying 4-Doors Trim Frame
Courtesy of FORD MOTOR CO.

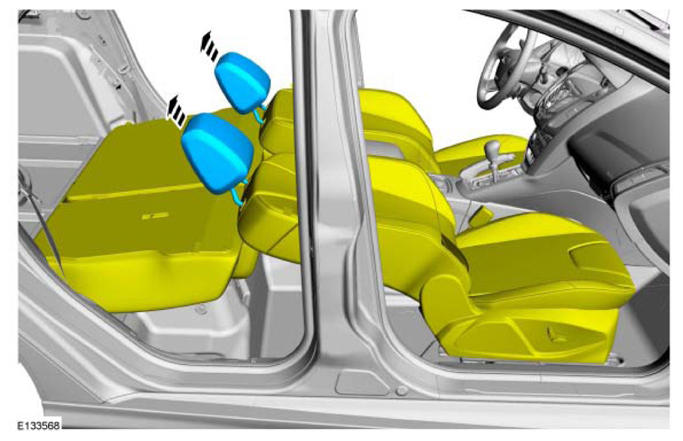

Fig 10: Adjusting Driver And Passenger Seats
Courtesy of FORD MOTOR CO.

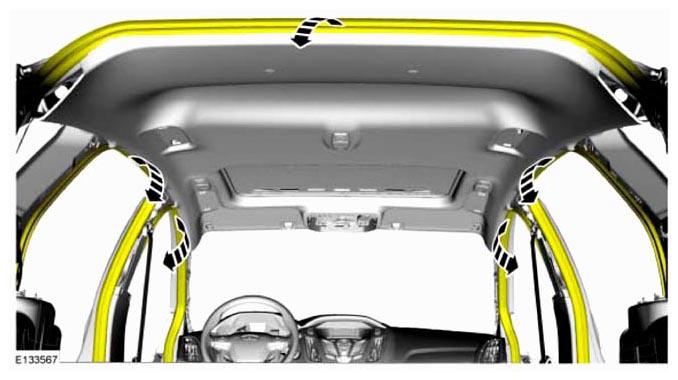

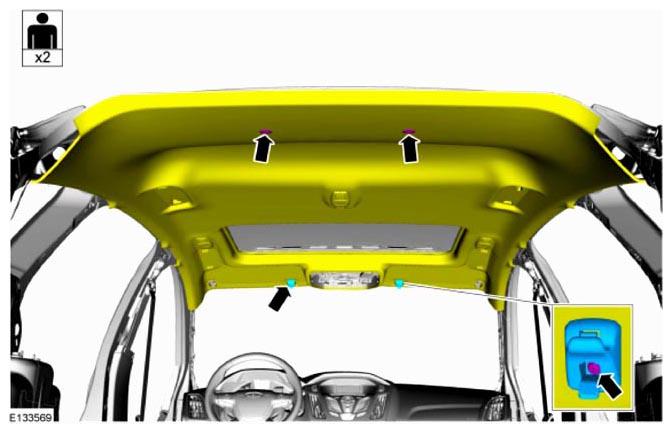

Fig 11: Locating Roof Lining And Cover Fasteners
Courtesy of FORD MOTOR CO.

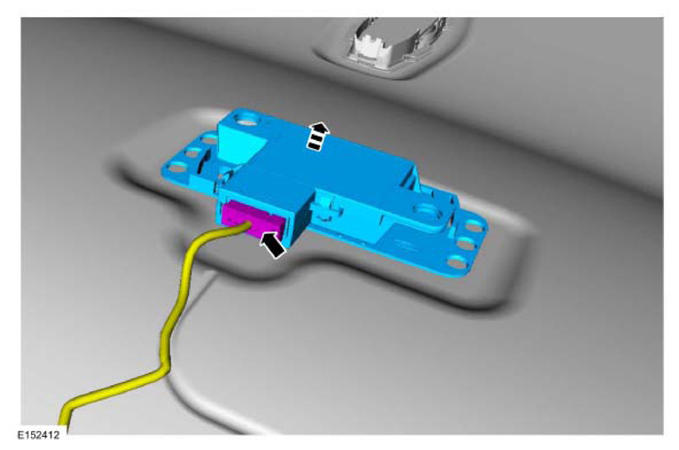

NOTE: Gently pry the compass module away from the headliner or damage to the headliner may occur.

Fig 12: Locating Compass Module Wire Harness Connectors
Courtesy of FORD MOTOR CO.
