Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Evacuate and recover the A/C refrigerant.
Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
Remove the cowl panel grille.
Refer to: COWL PANEL GRILLE .

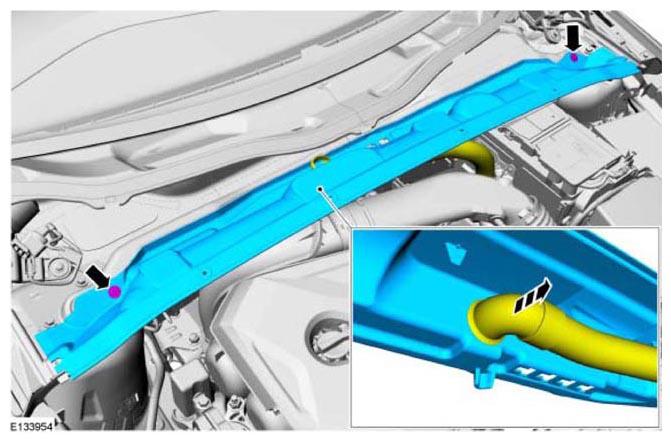

Fig 1: Removing Air Conditioning System Hose
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

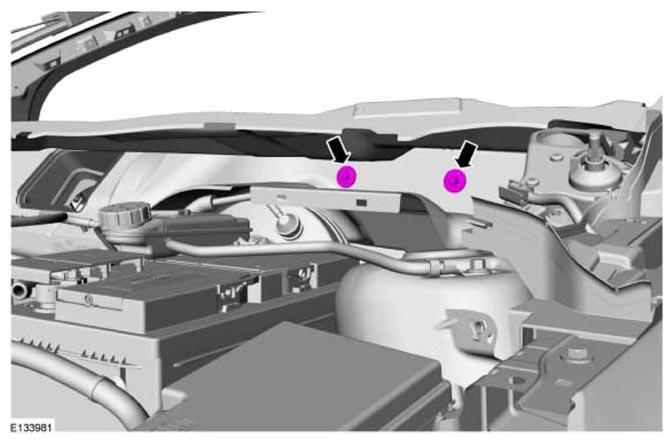

Fig 2: Locating Cowl Panel Grille Fasteners
Courtesy of FORD MOTOR CO.

NOTE: Make sure all openings are sealed.

Fig 3: Locating A/C System Connectors

Courtesy of FORD MOTOR CO.

Torque : 8 Nm
NOTE: Make sure all openings are sealed.

Fig 4: Checking All Opening Sealed Hoses
Courtesy of FORD MOTOR CO.
Remove both front doors. Refer to FRONT DOOR
Remove the floor console.
Refer to: Floor Console - Vehicles Without: Center Armrest .

Refer to: Floor Console - Vehicles With: Center Armrest .
Disconnect the battery.
Refer to: BATTERY DISCONNECT AND CONNECT .
Remove the automatic transmission selector lever or the manual transmission gearshift lever.
Refer to: EXTERNAL CONTROLS .

Refer to: GEARSHIFT LEVER - VEHICLES WITH: 5-SPEED MANUAL TRANSMISSION - B5/IB5/5-SPEED MANUAL TRANSMISSION - MTX75 .

Refer to: GEARSHIFT LEVER - VEHICLES WITH: 6-SPEED MANUAL TRANSMISSION - B6/6-SPEED MANUAL TRANSMISSION - MMT6 .

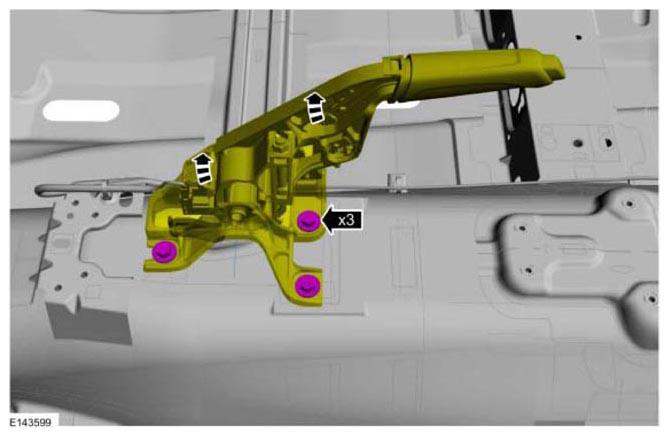

Position the parking brake control aside.
Torque : 35 Nm

Fig 5: Positioning Of Parking Brake Control Lever
Courtesy of FORD MOTOR CO.
Both sides. Refer to A-PILLAR TRIM PANEL .

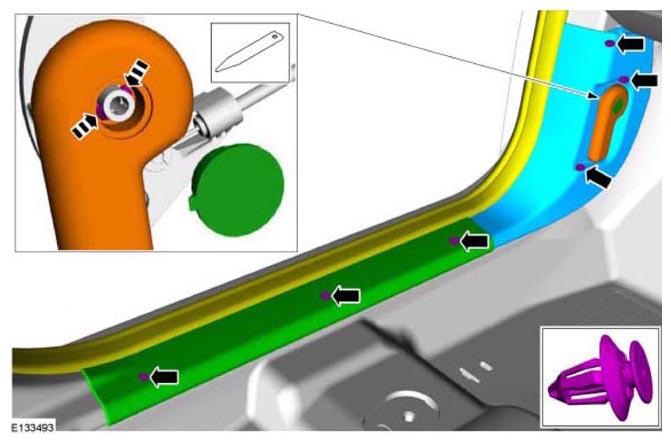

Fig 6: Locating Pillar Trim Fasteners
Courtesy of FORD MOTOR CO.

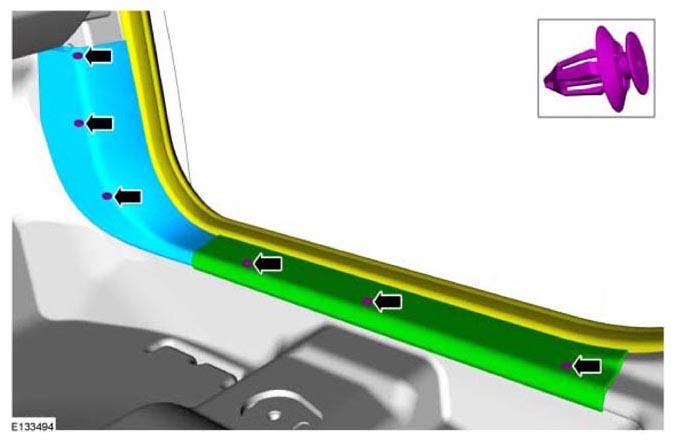

Fig 7: Locating Trim Fasteners
Courtesy of FORD MOTOR CO.
Interior trim removal tool.

Fig 8: Removing Interior Trim
Courtesy of FORD MOTOR CO.
Fig 9: Removing Door Lock Suction Pipe
Courtesy of FORD MOTOR CO.
Fig 10: Locating Door Inner Lower Cover Fasteners
Courtesy of FORD MOTOR CO.
Fig 11: Removing Door Lock Suction Pipe
Courtesy of FORD MOTOR CO.
Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.
Torque : 28 Nm

Fig 12: Removing Steering Column Shaft-To-Steering Gear Bolt
Courtesy of FORD MOTOR CO.

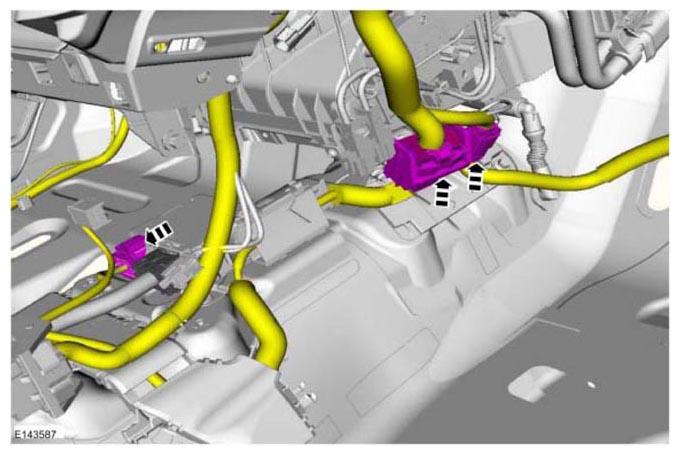

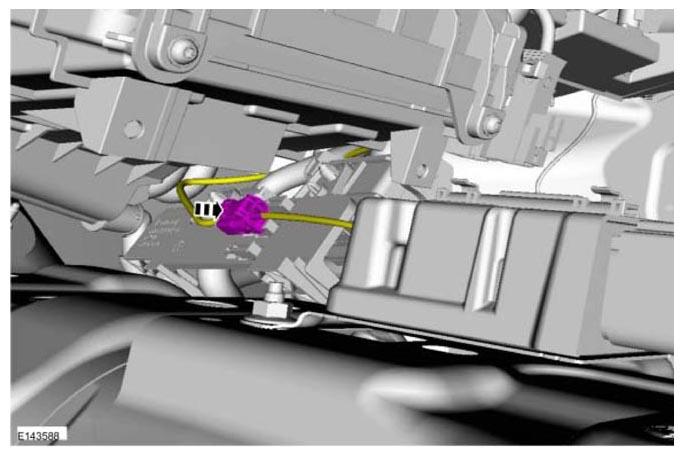

Fig 13: Releasing Electrical Connectors
Courtesy of FORD MOTOR CO.
NOTE: Base audio shown in illustration, Premium and Sony® sound similar.

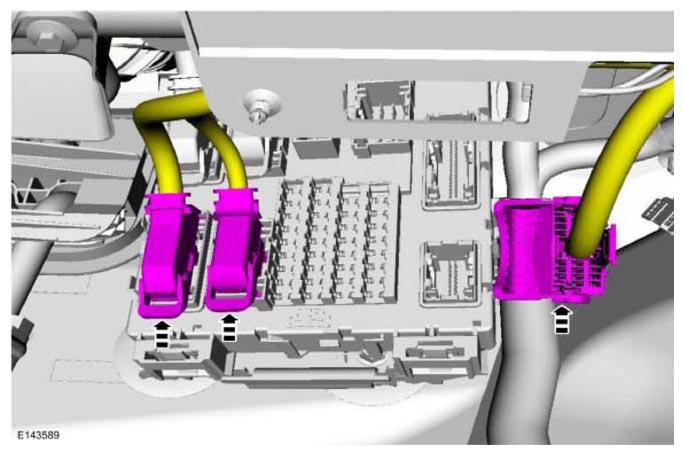

Fig 14: Releasing Audio Connector
Courtesy of FORD MOTOR CO.
Fig 15: Releasing Sound Base Audio Connectors
Courtesy of FORD MOTOR CO.

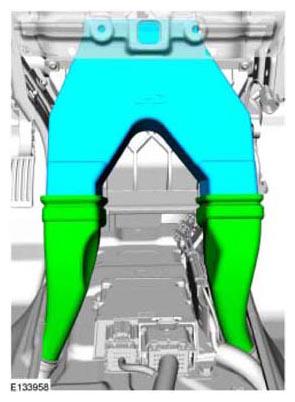

Fig 16: Identifying A/C Duct
Courtesy of FORD MOTOR CO.
Fig 17: Removing A/C System Wire Cover
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

Fig 18: Locating Instrument Panel Fasteners
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

Fig 19: Locating Instrument Panel Fasteners
Courtesy of FORD MOTOR CO.
Both sides.
Torque : 40 Nm

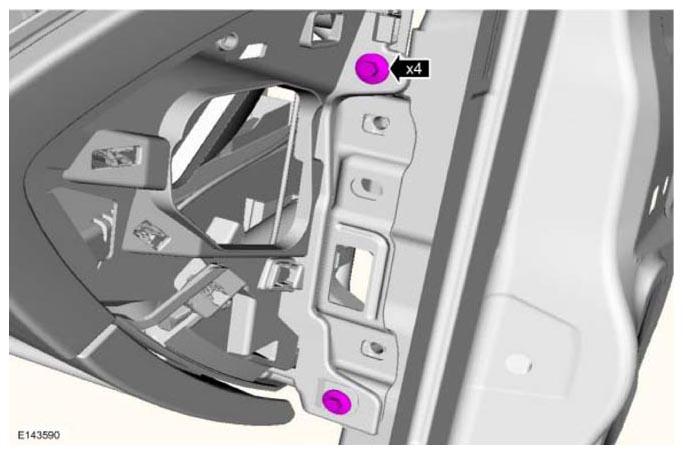

Fig 20: Locating Instrument Panel Bolts
Courtesy of FORD MOTOR CO.

NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out the following steps.

NOTE: RH side shown in illustration, LH side similar.

NOTE: Remove the bolts from one side completely and support the instrument panel before removing the bolts from the opposite side.

Fig 21: Locating Instrument Panel RH Side Fasteners

Courtesy of FORD MOTOR CO.

Torque : 25 Nm

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

Remove the instrument panel from the vehicle.
Rotate the instrument panel face down and remove through the LH front door opening.
