Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.
  1. Refer to: HEALTH AND SAFETY PRECAUTIONS .
  2. Remove both A-pillar trim panels.

    Refer to: A-PILLAR TRIM PANEL .

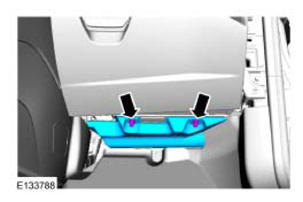

  3. Fig 1: Locating Trim Fasteners
    G08065306Courtesy of FORD MOTOR CO.
  4. Both sides.

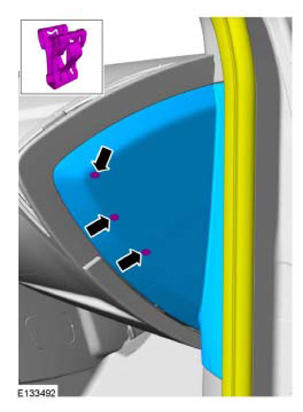

    Fig 2: Locating Pillar Trim Fasteners
    G08065305Courtesy of FORD MOTOR CO.
  5. Torque  : 2 Nm

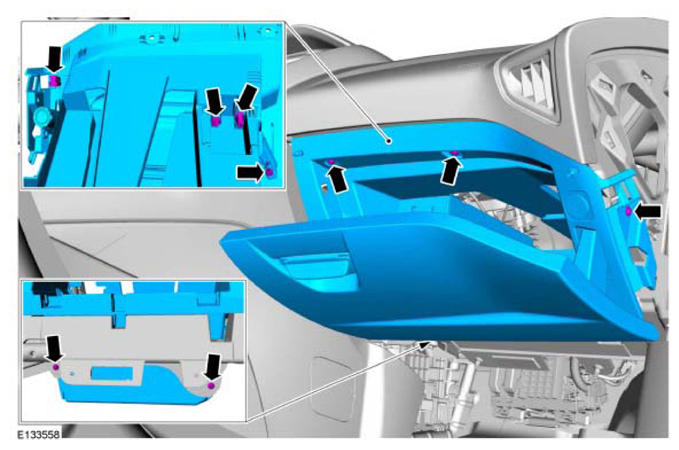

    Fig 3: Locating Glove Box Fasteners
    G08065307Courtesy of FORD MOTOR CO.
  6. Disconnect the battery.

    Refer to: BATTERY DISCONNECT AND CONNECT .

  7. Torque  : 8 Nm

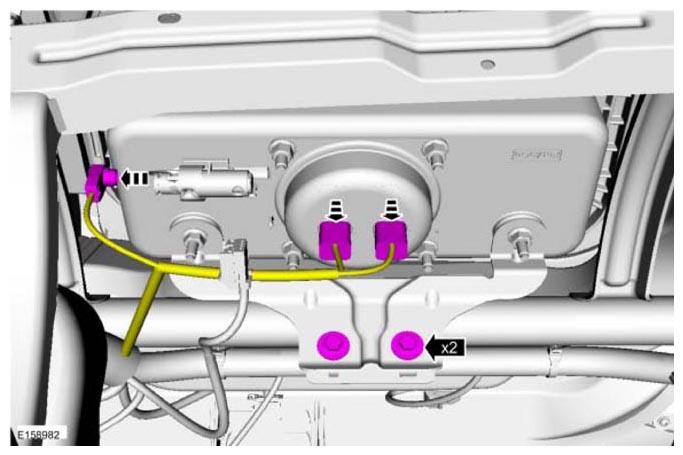

    Fig 4: Disconnecting Battery Connector Terminals
    G08100970Courtesy of FORD MOTOR CO.
  8. Fig 5: Locating A/C Duct
    G08100971Courtesy of FORD MOTOR CO.
  9. Fig 6: Locating Center Console Connector
    G08100972Courtesy of FORD MOTOR CO.
  10. Remove the front floor console.

    Refer to: Floor Console - Vehicles Without: Center Armrest  .

    Refer to: Floor Console - Vehicles With: Center Armrest  .

  11. Depending on vehicle option content, remove the FCDIM or the FDIM.

    Refer to: FRONT DISPLAY INTERFACE MODULE (FDIM) .

    Refer to: FRONT CONTROL/DISPLAY INTERFACE MODULE (FCDIM) .

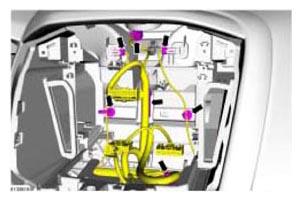

  12. Fig 7: Locating Front Display Interface Module (FDIM) Harness Fasteners
    G08100973Courtesy of FORD MOTOR CO.
  13. Torque  : 1 Nm

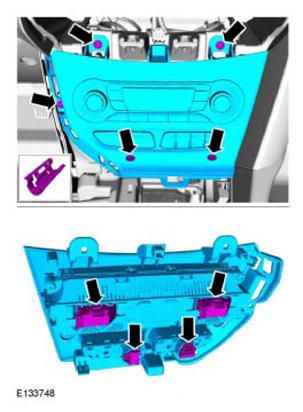

    Fig 8: Locating Stereo System Fasteners
    G08065665Courtesy of FORD MOTOR CO.
  14. Vehicles equipped with the premium audio system remove the APIM.

    Refer to: ACCESSORY PROTOCOL INTERFACE MODULE (APIM) .

  15. Fig 9: Locating Power Seat Connector
    G08100975Courtesy of FORD MOTOR CO.
  16. Fig 10: Rotating Steering Wheel
    G08100360Courtesy of FORD MOTOR CO.

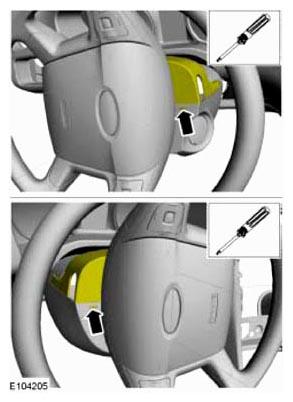

  17. Fig 11: Locating Steering Cover Upper Bracket
    G08100362Courtesy of FORD MOTOR CO.

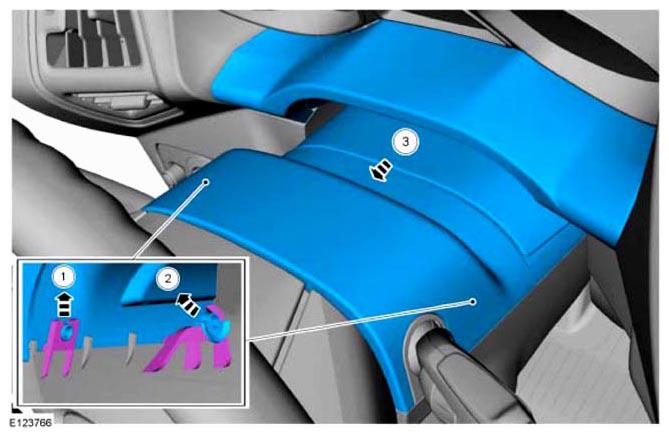

  18. Fig 12: Removing Steering Cover Bracket
    G08100363Courtesy of FORD MOTOR CO.

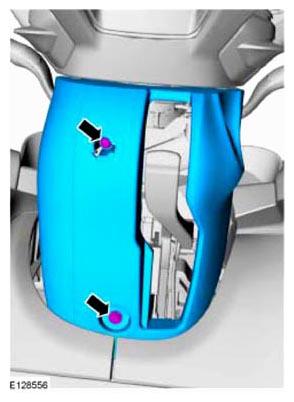

  19. Fig 13: Locating Steering Cover Fasteners
    G08100364Courtesy of FORD MOTOR CO.
  20. Vehicles without intelligent access.
    Fig 14: Locating Center Console Wiring Clips
    G08100980Courtesy of FORD MOTOR CO.
  21. Vehicles with intelligent access.
    Fig 15: Locating Center Console Wiring Clips
    G08100981Courtesy of FORD MOTOR CO.
  22. Remove and discard the steering column shaft-to-steering gear bolt and disconnect the steering column shaft from the steering gear.

    Torque  : 28 Nm

    Fig 16: Removing Steering Column Shaft-To-Steering Gear Bolt
    G08100930Courtesy of FORD MOTOR CO.
  23. Remove and discard the 4 steering column bolts and remove the steering column.

    Torque  : 28 Nm

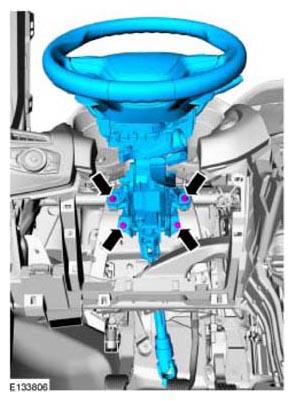

    Fig 17: Locating Steering Column Bolts
    G08100983Courtesy of FORD MOTOR CO.
  24. Torque  : 1 Nm

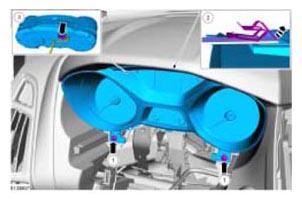

    Fig 18: Locating Cluster Assembly Connector And Fasteners
    G08100984Courtesy of FORD MOTOR CO.
  25. If equipped with intelligent access
    Fig 19: Locating Cluster Assembly Connector
    G08100985Courtesy of FORD MOTOR CO.
  26. Fig 20: Locating Front Instrument Panel A/C Connector
    G08100986Courtesy of FORD MOTOR CO.

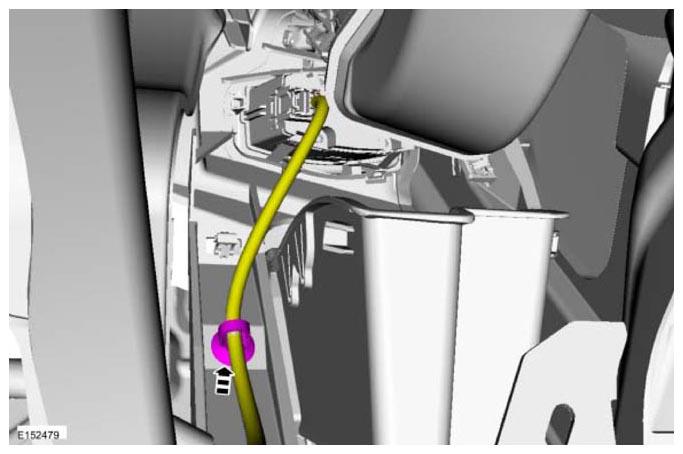

  27. Fig 21: Removing Instrument Panel Clip
    G08100987Courtesy of FORD MOTOR CO.
  28. Fig 22: Identifying DLC Cover
    G08100988Courtesy of FORD MOTOR CO.
  29. Fig 23: Identifying Intrument Panel Connector
    G08100989Courtesy of FORD MOTOR CO.

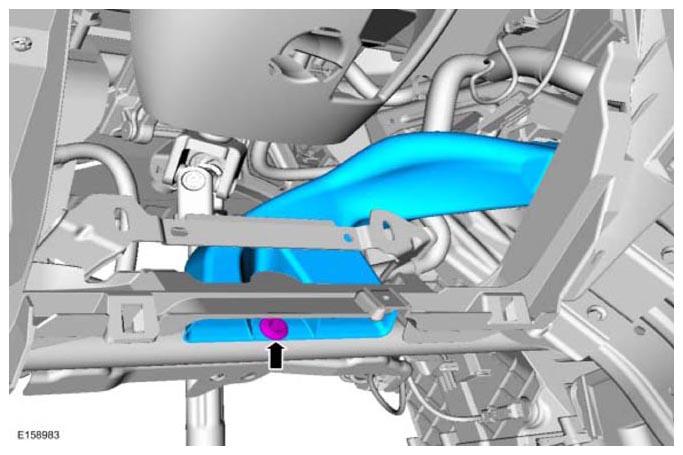

  30. Fig 24: Locating Steering Support Bracket Fasteners
    G08100990Courtesy of FORD MOTOR CO.
  31. NOTE: To avoid damaging the upper section, the aid of an assistant is required to carry out this step.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.
    NOTE: Install all the bolts finger tight before final tightening.

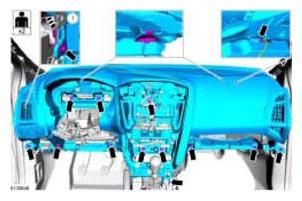

    Fig 25: Locating Instrument Panel Upper Section Fasteners
    G08100991Courtesy of FORD MOTOR CO.
  32. Remove the instrument panel upper section.

    Torque  : 3 Nm
