In-Vehicle Crossbeam: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Remove the cowl panel grille.
Refer to: COWL PANEL GRILLE .
Fig 1: Removing Air Conditioning System Hose
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

Fig 2: Locating Cowl Panel Grille Fasteners
Courtesy of FORD MOTOR CO.
Remove the instrument panel upper section.
Refer to: Instrument Panel Upper Section .
Remove both front doors.
Refer to: FRONT DOOR .
On both sides.
Torque : 40 Nm

Fig 3: Locating Instrument Panel Bolts
Courtesy of FORD MOTOR CO.
Fig 4: Identifying A/C Duct
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

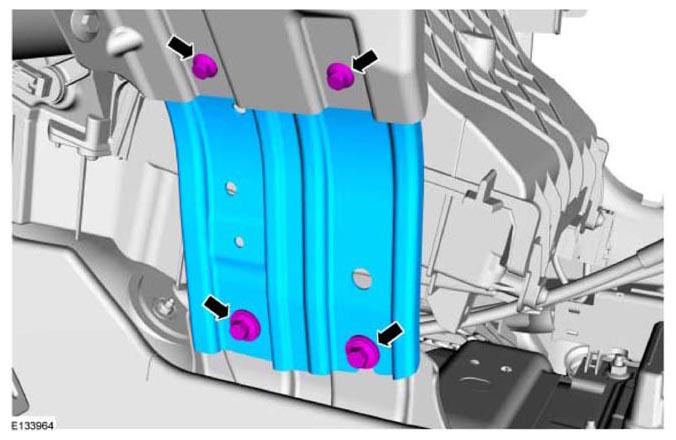

Fig 5: Locating Evaporator Housing Bracket Bolts
Courtesy of FORD MOTOR CO.

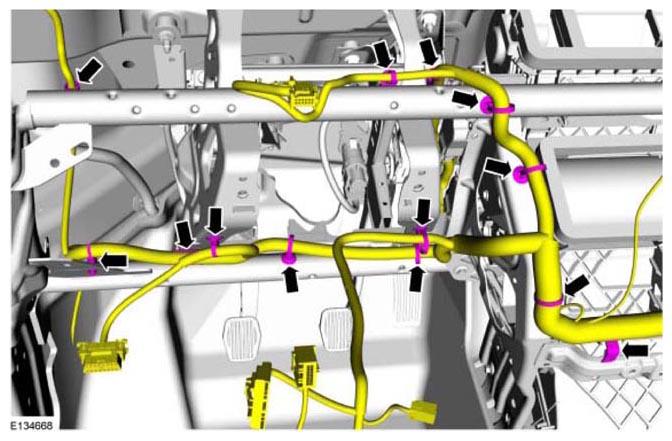

Fig 6: Locating Dashboard Wiring Harness Locking Clips
Courtesy of FORD MOTOR CO.

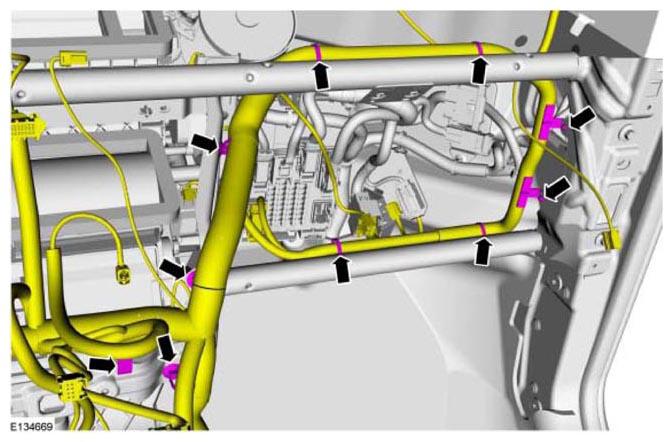

Fig 7: Locating Dashboard Wiring Harness Locking Clips
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

Fig 8: Locating Centre Console Cover Tie Clamp And Fasteners
Courtesy of FORD MOTOR CO.
Torque : 25 Nm

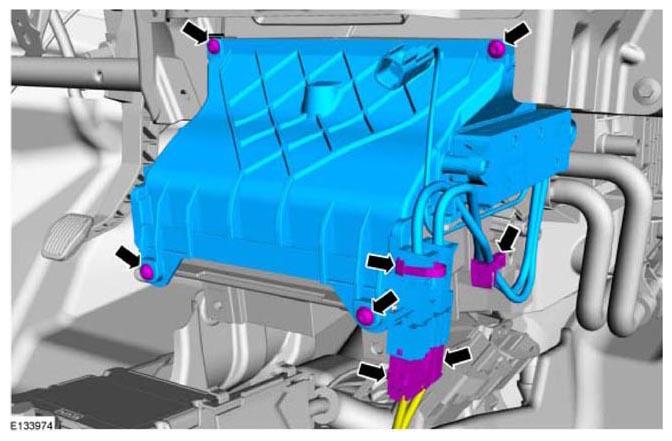

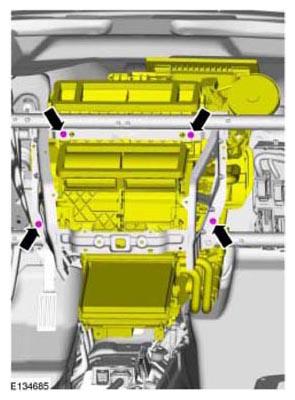

Fig 9: Locating Evaporator Housing Fasteners
Courtesy of FORD MOTOR CO.

NOTE: To avoid damaging the in-vehicle cross beam, an assistant is required when carrying out the following steps.

NOTE: Remove the bolts from one side completely and support the in-vehicle cross beam before removing the bolts from the opposite side

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the in-vehicle cross beam or damage to the components may occur.

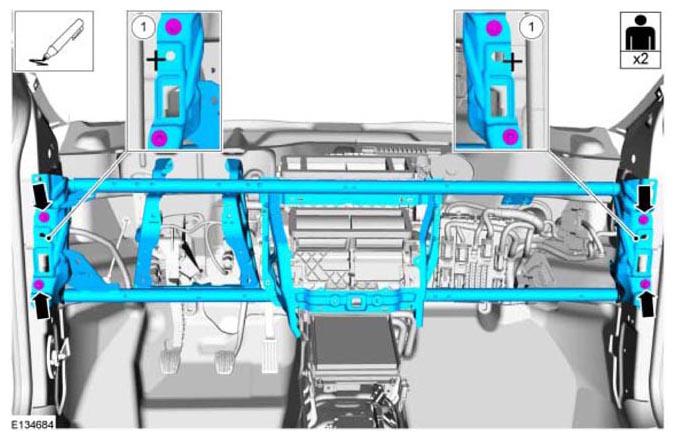

Fig 10: Locating Dashboard Supporting Bolts

Courtesy of FORD MOTOR CO.

Remove the in-vehicle cross beam from the vehicle.
Torque : 25 Nm
