Home >> Ford >> 2012 >> Focus L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Diagrams >> C3209 Side Impact Sensor, Second Row, LH

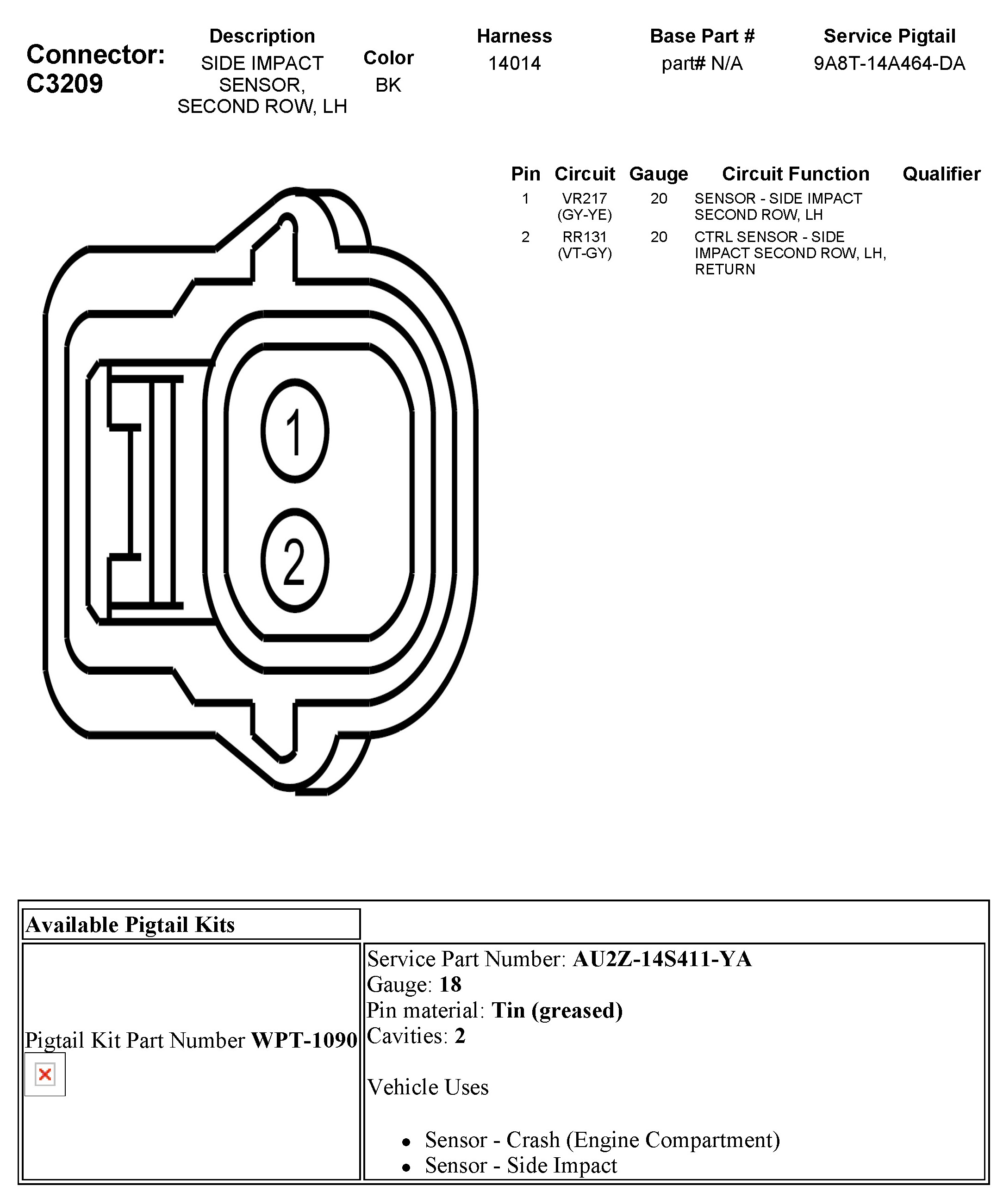

C3209 Side Impact Sensor, Second Row, LH
