Handles, Locks, Latches and Entry Systems - with Intelligent Access (IA)

Door Module

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

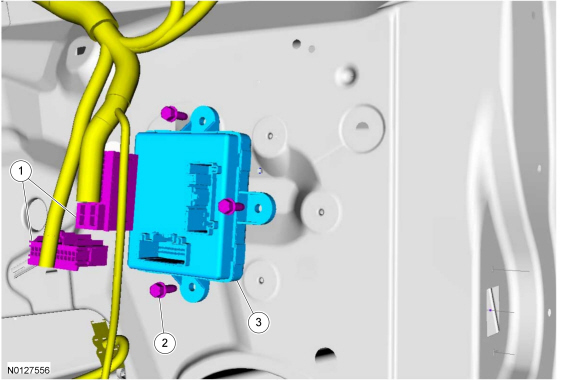

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the door trim panel. REFER to Door Trim Panel - Front or REFER to Door Trim Panel - Rear .

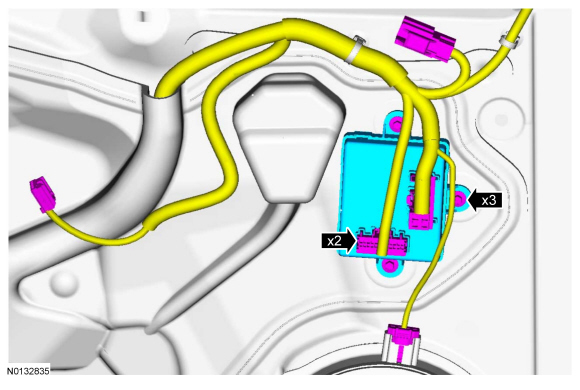

2.
- 2 Nm (18 lb-in)





Installation

1. To install, reverse the removal procedure.
