Quarter Glass Trim Panel - Upper

Quarter Glass Trim Panel - Upper

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

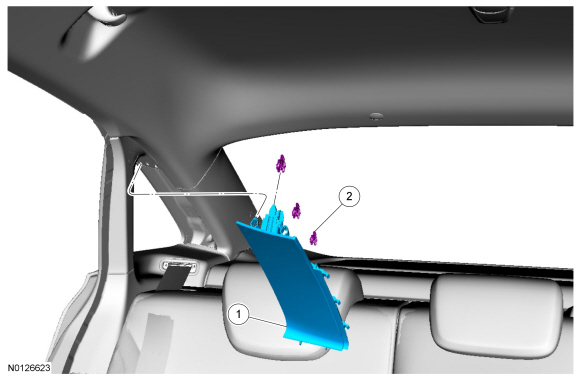

Exploded View

4-Door Sedan Shown 5-Door Hatchback Similar










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the D-pillar trim panel. REFER to D-Pillar Trim Panel - 4-Door Sedan or REFER to D-Pillar Trim Panel - 5-Door Hatchback .

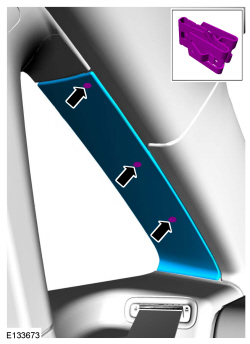

2. Release the 3 quarter glass upper trim panel clips and remove the trim panel.





Installation

1. To install, reverse the removal procedure.
