Scuff Plate Trim Panel - Front

Scuff Plate Trim Panel - Front

WARNING: Before beginning any service procedure, REFER to Safety Warnings . Failure to follow this instruction may result in serious personal injury.

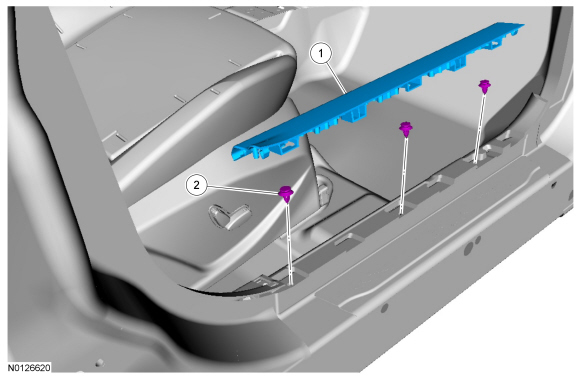

Exploded View










Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front door scuff plate.

1. Position aside the front door weatherstrip from around the front door scuff plate.

2. Release the 3 clips and remove the front door scuff plate.






Installation

1. To install, reverse the removal procedure.
