DTC Chart: Instrument Panel Cluster (IPC)




DTC Chart: Instrument Panel Cluster (IPC)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

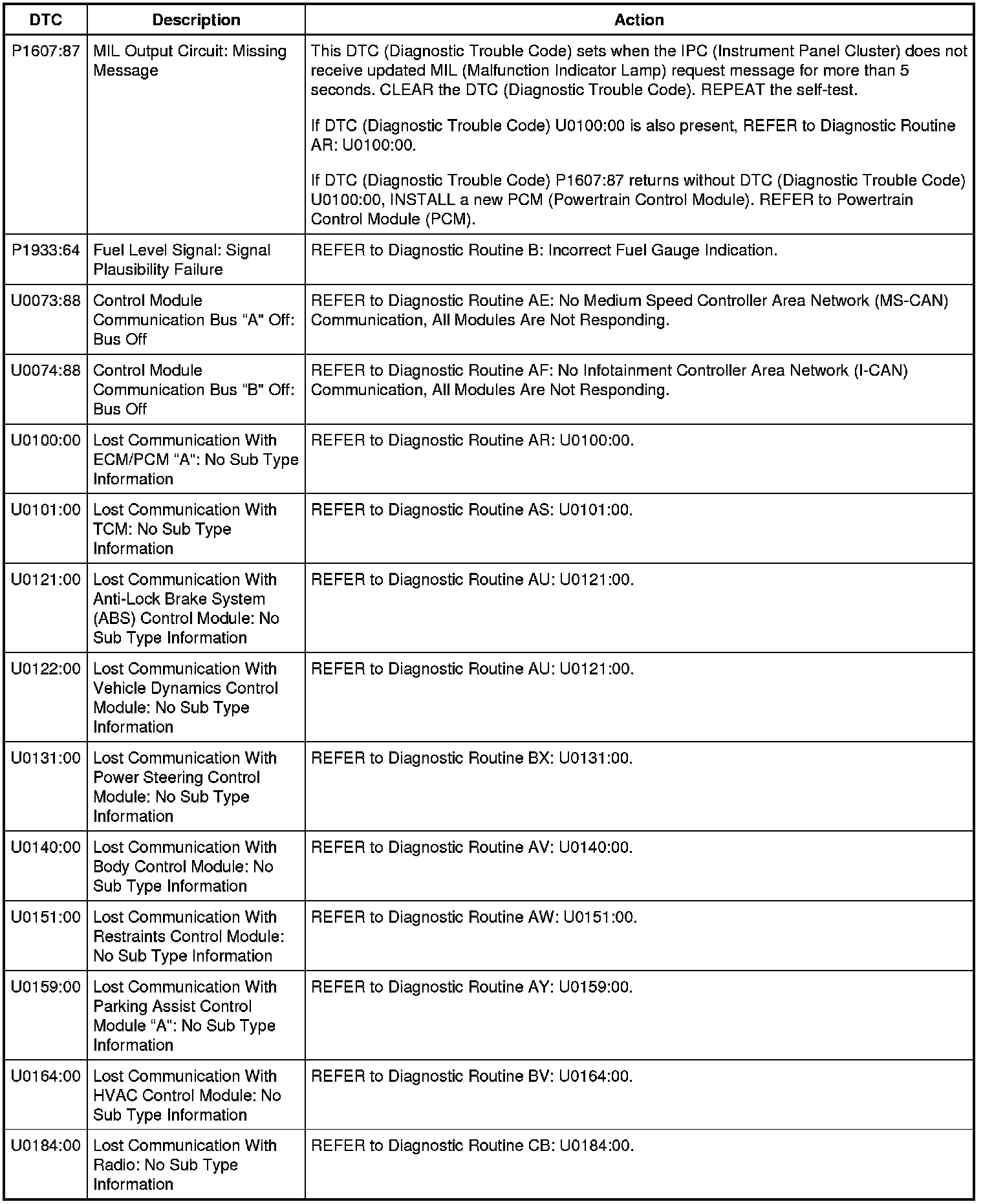

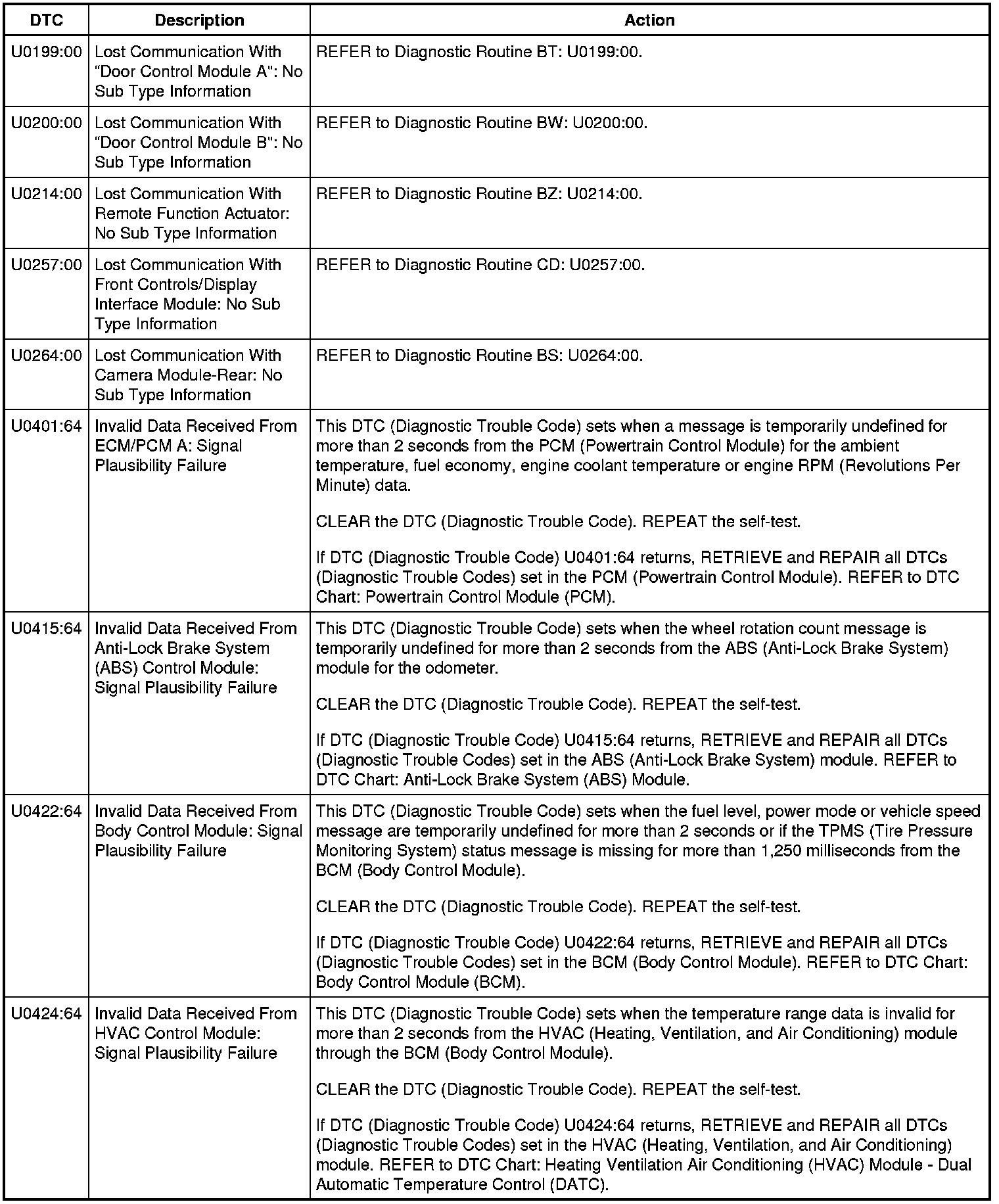

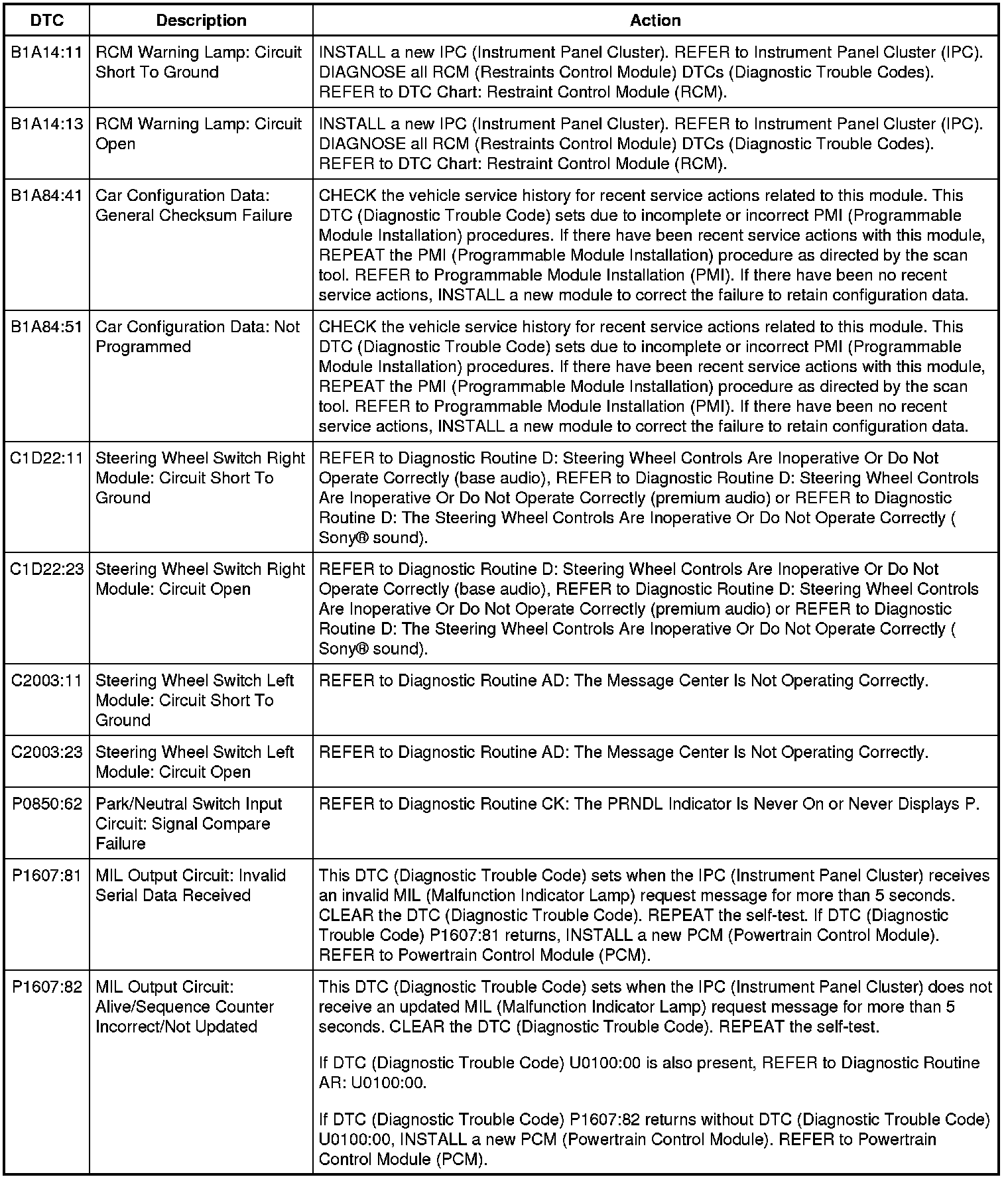

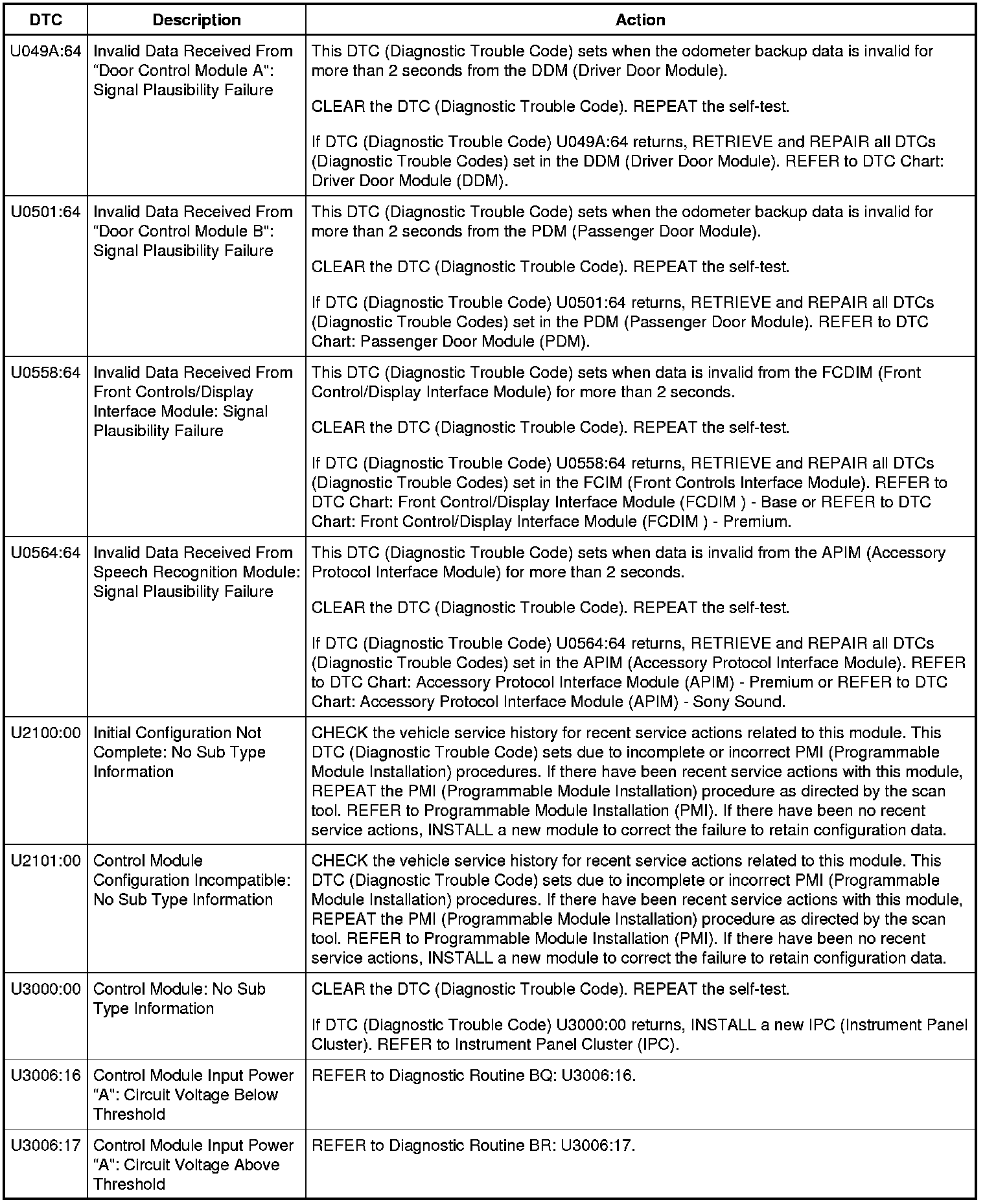

DTC Chart - IPC (Instrument Panel Cluster)
