Parking Aid - Audible




DTC Chart: Parking Aid Module (PAM)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

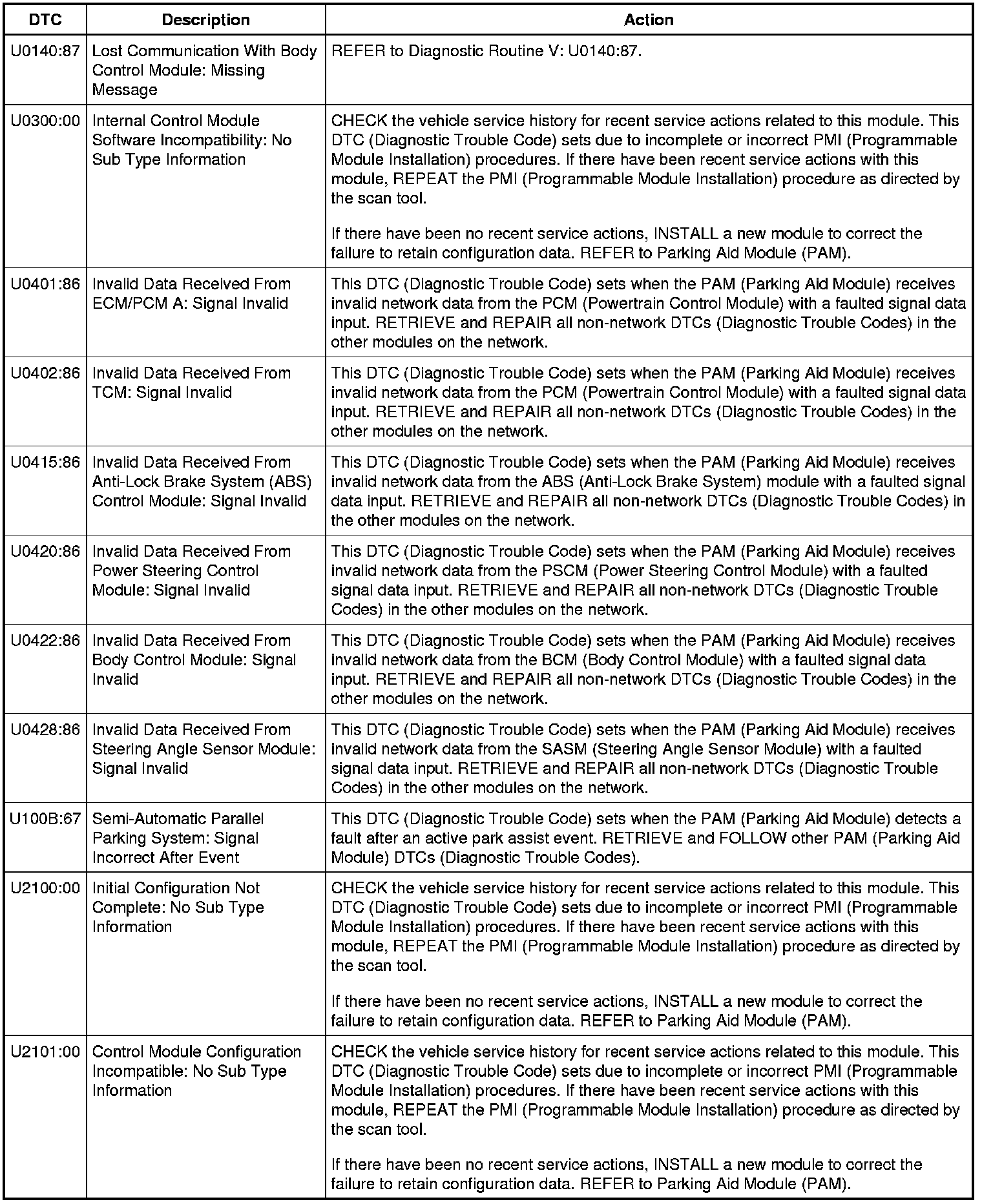

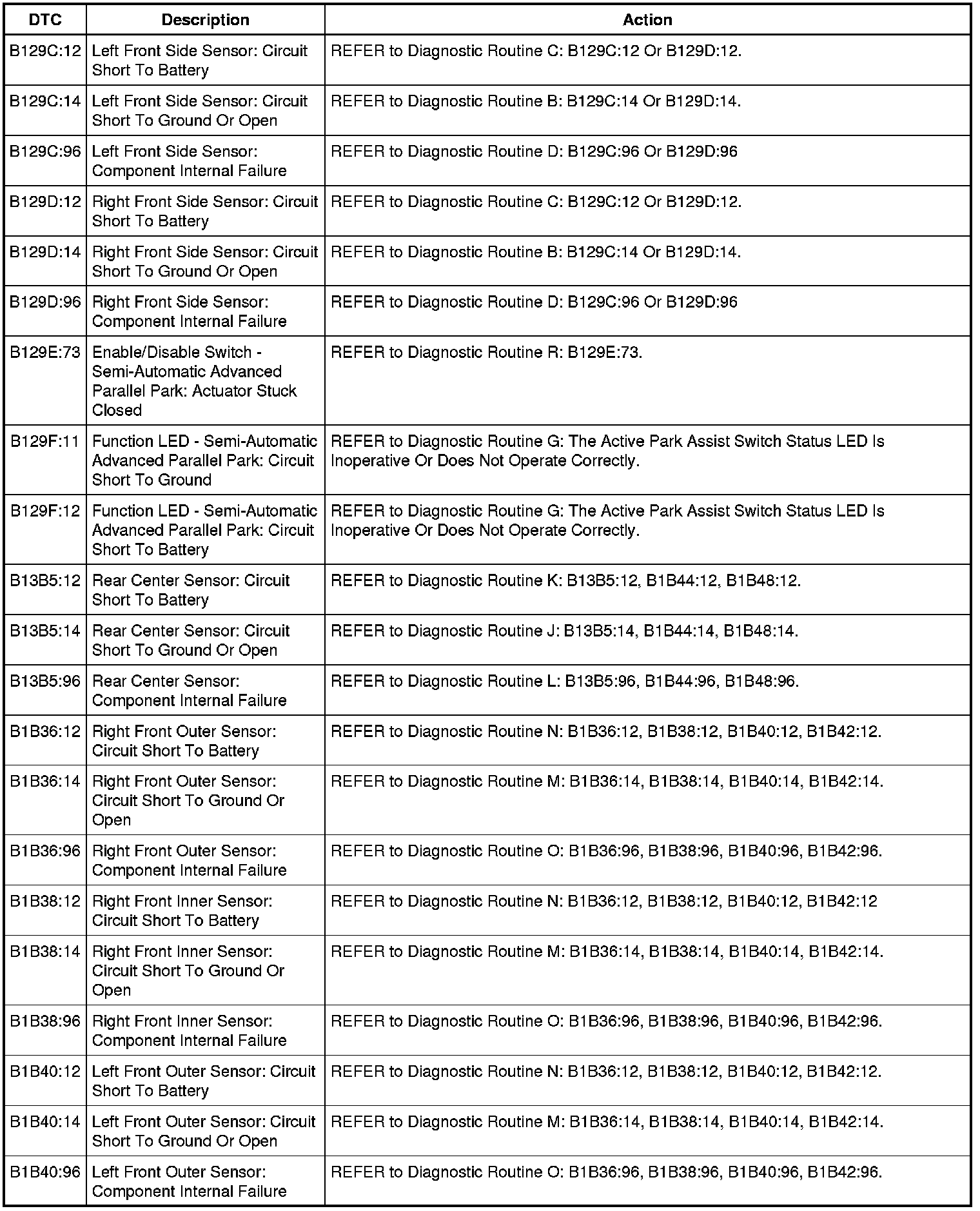

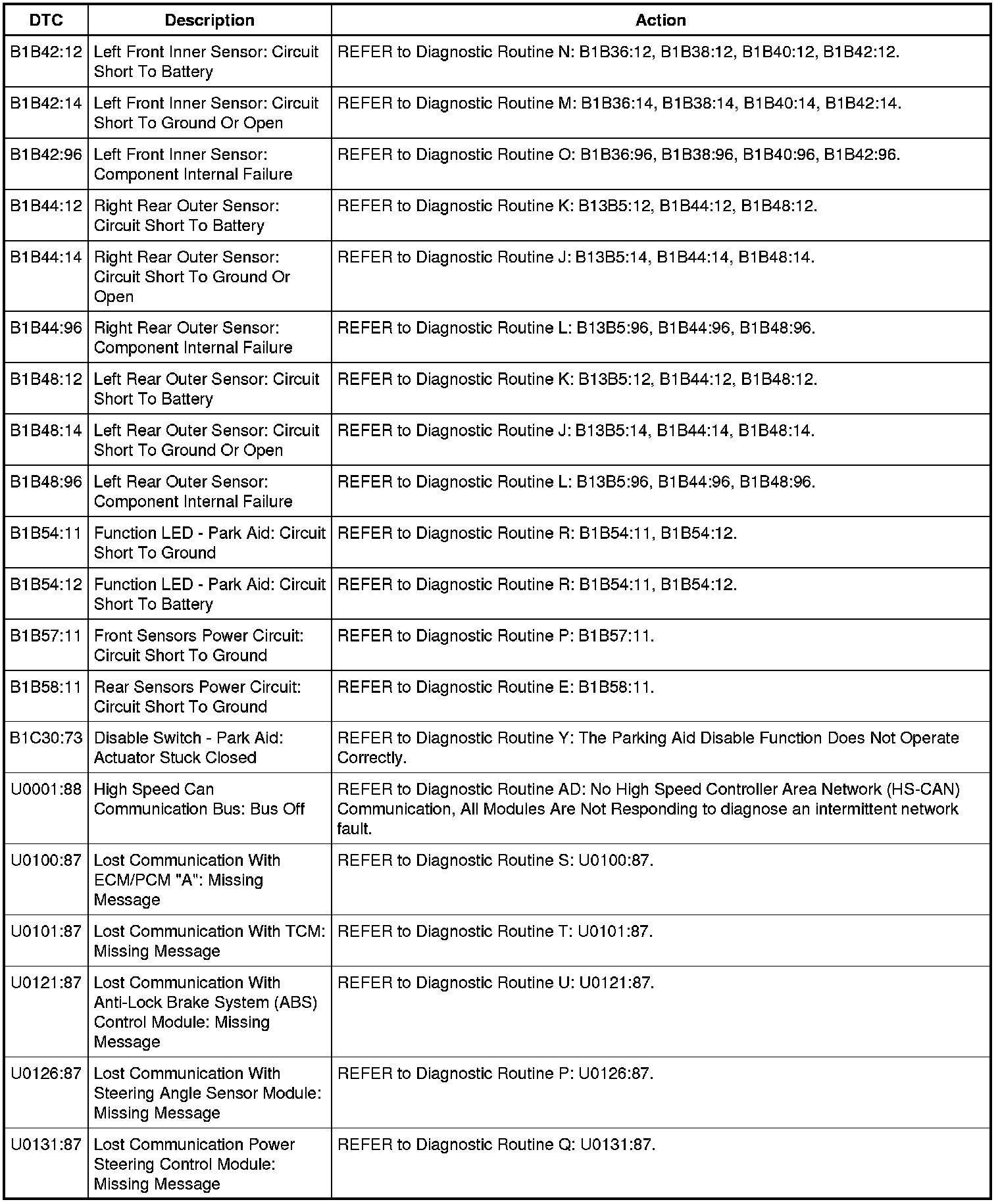

PAM (Parking Aid Module) DTC Chart
