DTC Chart: Remote Function Actuator (RFA)




DTC Chart: Remote Function Actuator (RFA)

Diagnostics assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to Diagnostic Methods Diagnostic Methods for information about these practices.

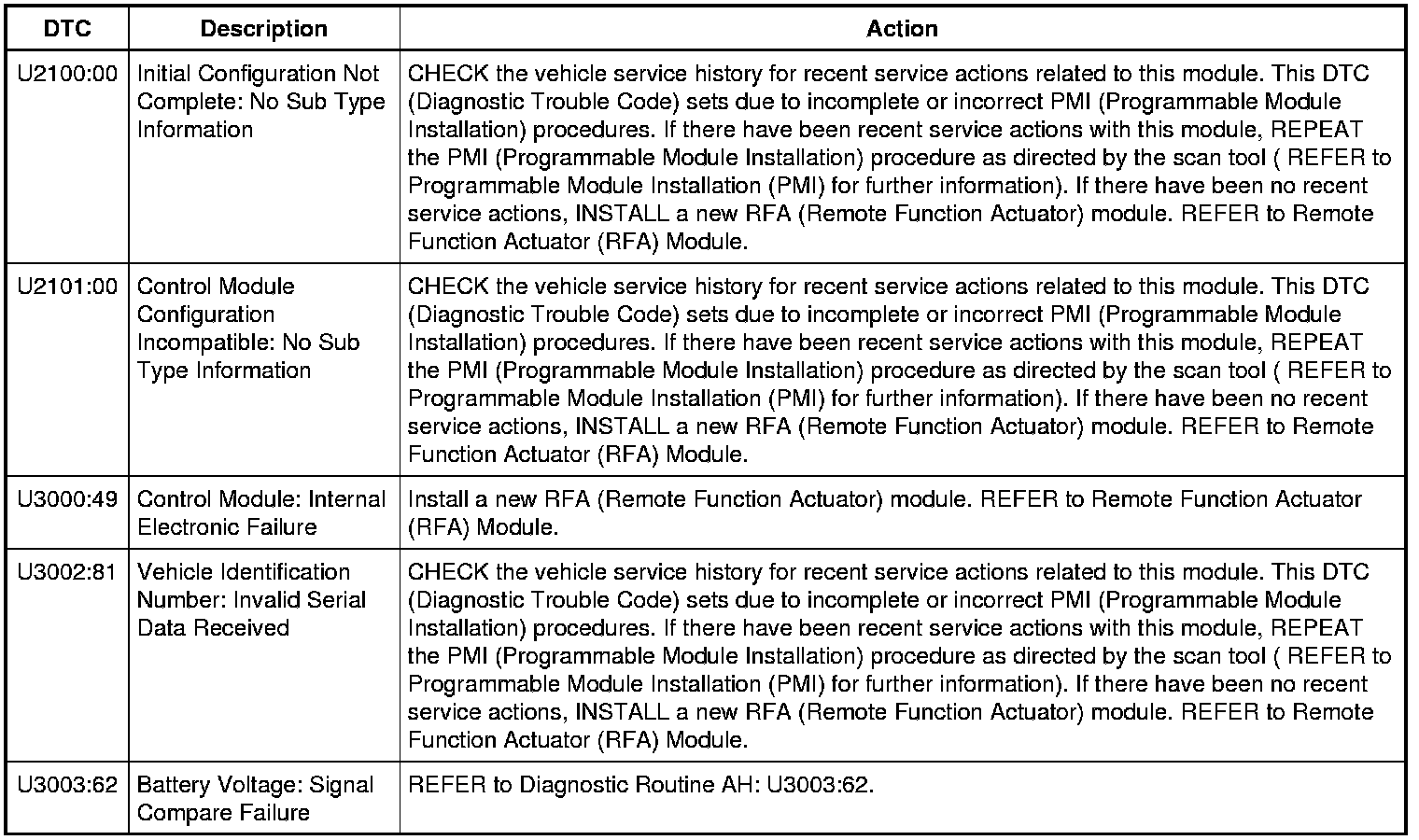

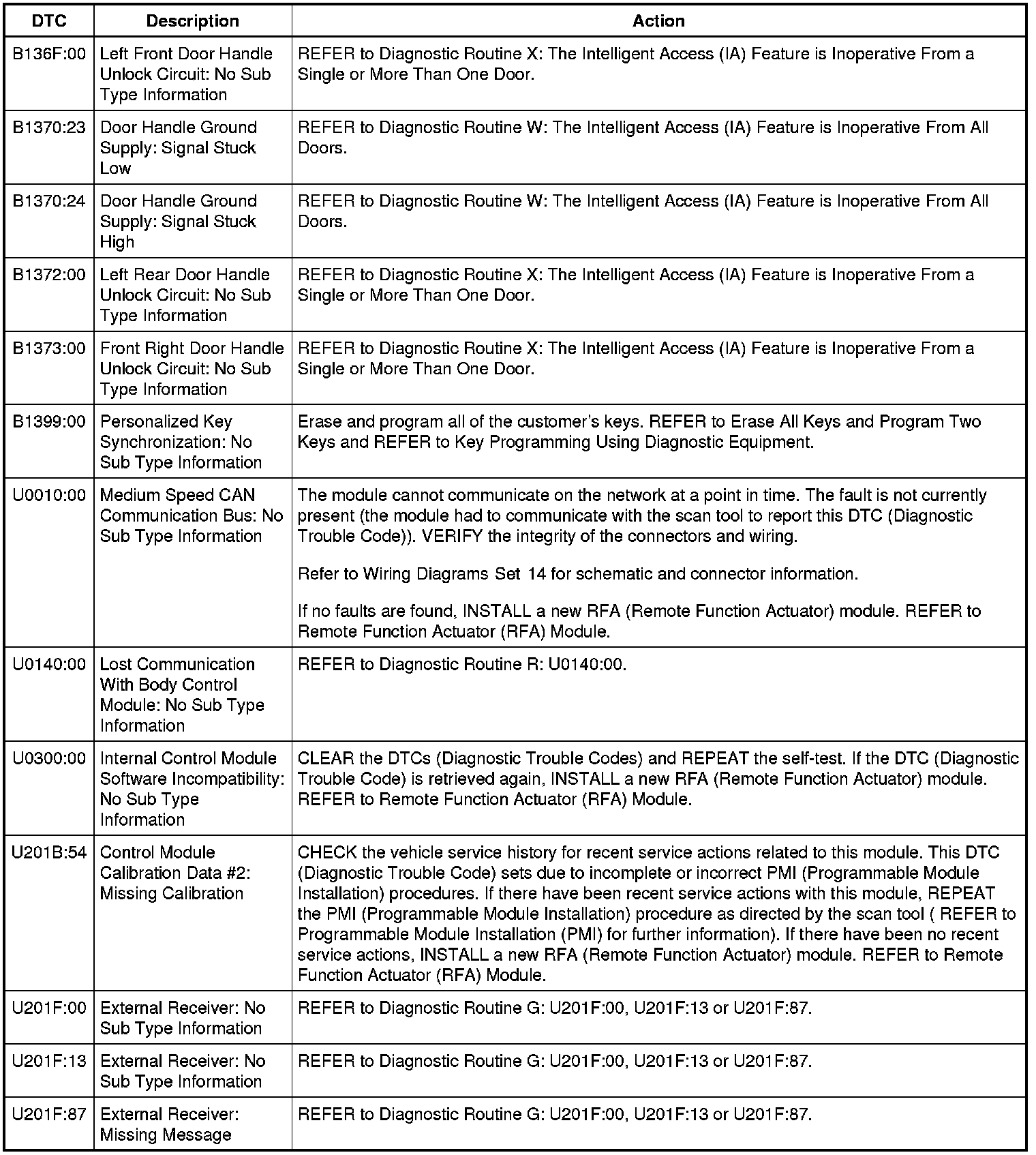

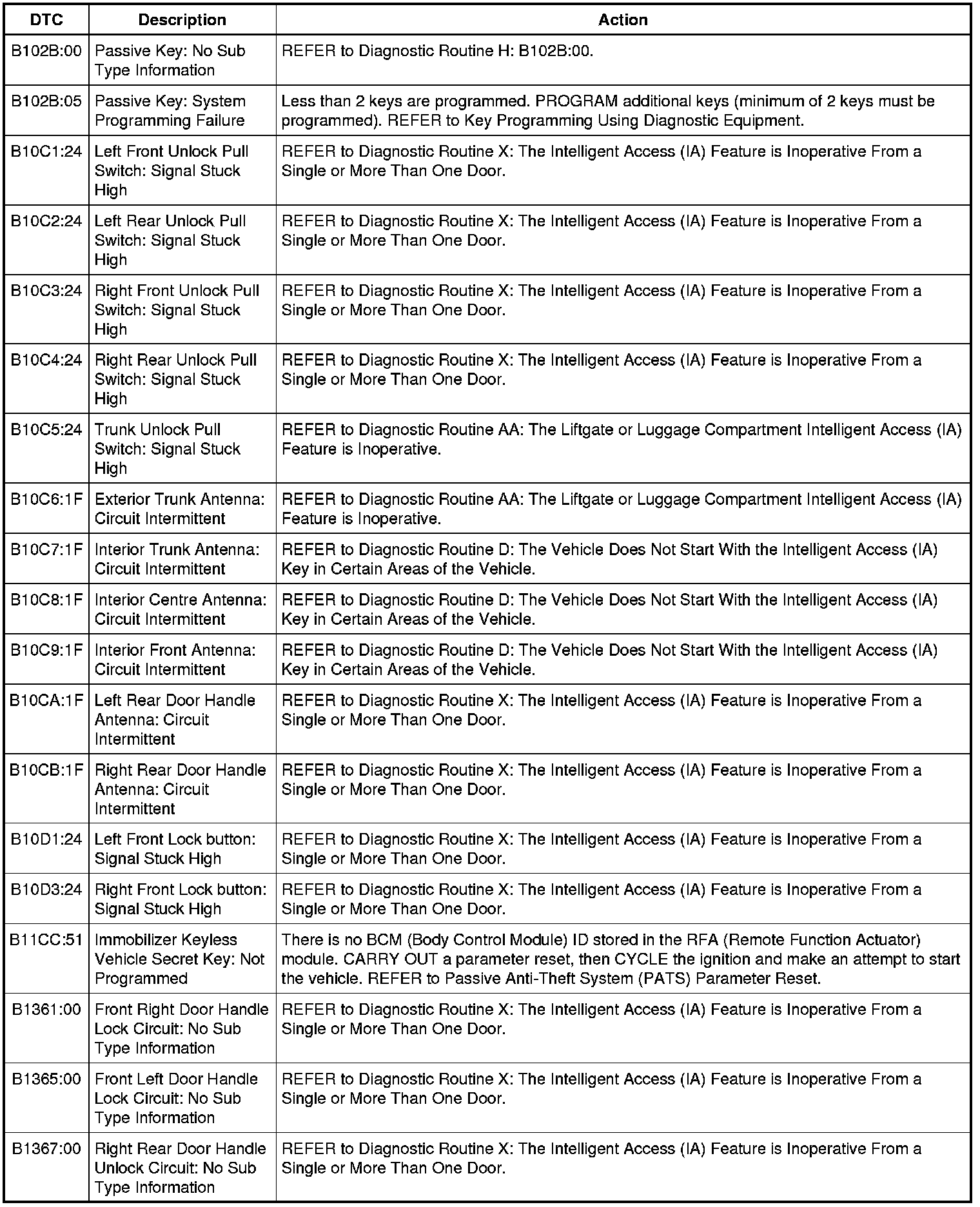

RFA (Remote Function Actuator) Module DTC Chart
