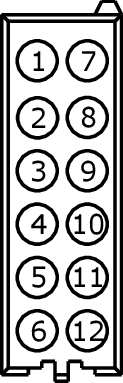

Connector End View (C4014B) - PARKING AID MODULE (PAM)

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RMP06 (YE-OG)

22

CTRL MOD. - PARKING AID # SENSORS FRONT

2

LMP06 (VT-GY)

22

CTRL MOD. - PARKING AID # SENSORS FRONT

3

*

*

Not Used

4

*

*

Not Used

5

VMP11 (BU-GN)

22

SENSOR - PARKING AID # FRONT # (LEFT OUTER)

6

VMP10 (WH-BU)

22

SENSOR - PARKING AID # FRONT # (LEFT INNER)

7

VMP12 (BU-GY)

22

SENSOR - PARKING AID # FRONT # (RIGHT INNER)

8

VMP13 (BU-OG)

22

SENSOR - PARKING AID # FRONT # (RIGHT OUTER)

9

VMP20 (GY-OG)

22

CTRL MOD. - ACTIVE PARK ASSIST # SENSOR LEFT

10

VMP21 (WH-BN)

22

CTRL MOD. - ACTIVE PARK ASSIST # SENSOR RIGHT

11

*

*

Not Used

12

*

*

Not Used

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1178

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-YA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

12

Vehicle Uses

Module - Reverse Park Aid (RPA)
