Fuel Tank Filler Pipe: Removal
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Refer to: Fuel Tank Draining
- 2.
Refer to: Fuel Filler Door Assembly - 5-Door
- 5.

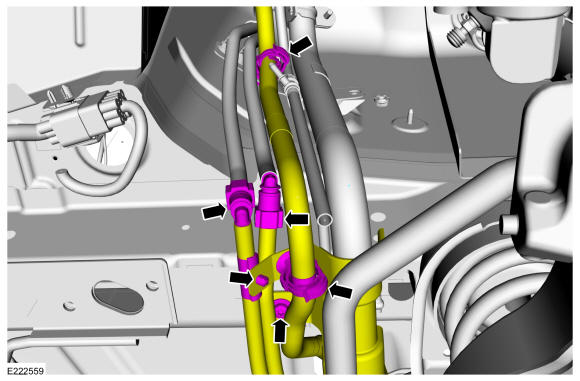

Refer to: Quick Release CouplingTorque: 89 lb.in (10 Nm)
- 6.NOTE: Note the position of the components before removal.NOTE: Make sure that the components are installed to the position noted before removal.
Refer to: Quick Release Coupling

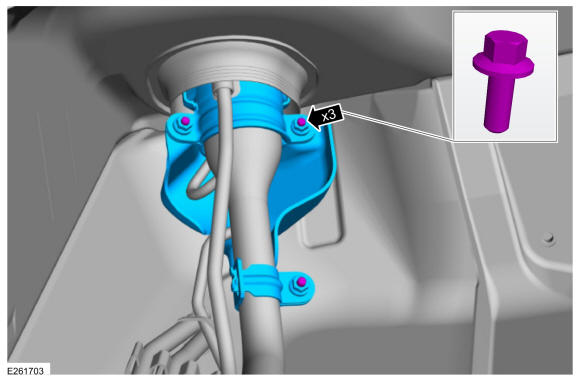

Torque: 35 lb.in (4 Nm)
