Fuel Pump and Sender Unit: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

1.

Refer to: Fuel Tank

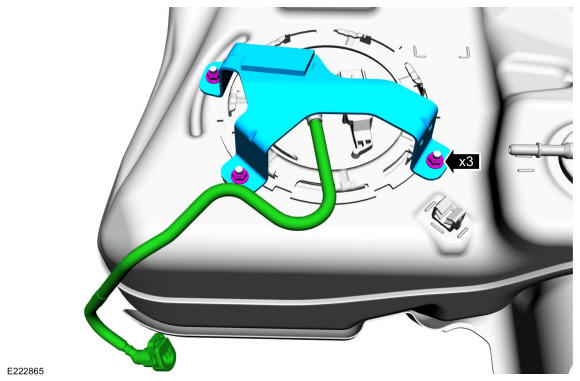

2.

Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

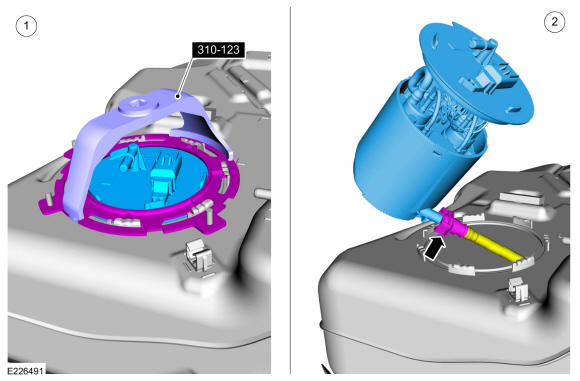

3.
- 1.

  Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.
- 2.

  NOTE: Be prepared to collect escaping fluid.

  Refer to: Quick Release Coupling

Courtesy of FORD MOTOR COMPANY
