Fuel Level Sender: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Refer to: Fuel Tank

Courtesy of FORD MOTOR COMPANY

3.

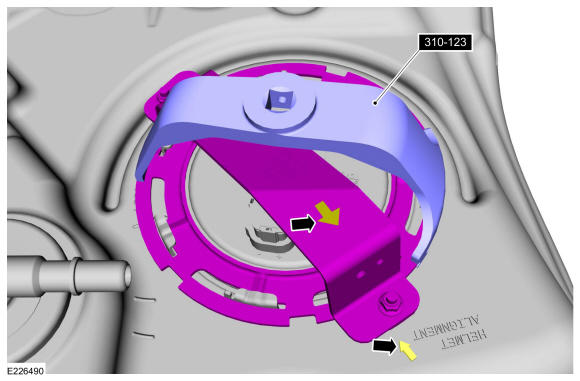

NOTE: Make sure that the installation marks are aligned.

Use Special Service Tool: 310-123 Locking Ring, Fuel Tank.

Courtesy of FORD MOTOR COMPANY

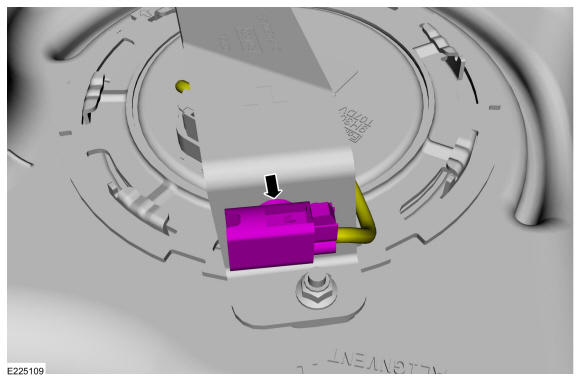

4.
- 1.

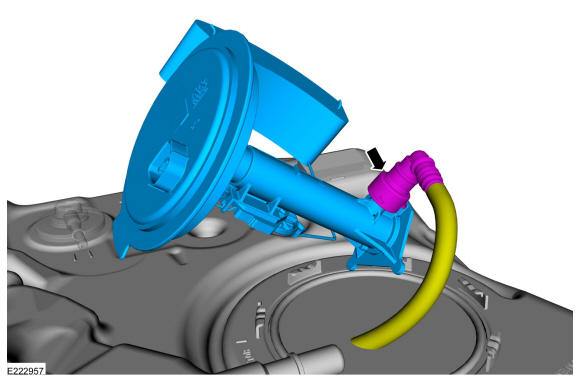

  NOTE: Be prepared to collect escaping fluid.

  Refer to: Quick Release Coupling

Courtesy of FORD MOTOR COMPANY
