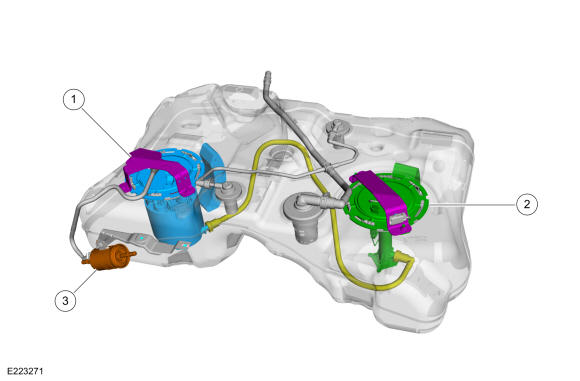

Fuel Tank and Lines - Component Location

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Fuel Pump and Sender Unit
2	Fuel Level Sender
3	Fuel Filter
