Section 634 (Parking Aid System - Vehicles With: Parking Aid Camera (Except Electric Vehicle))
>>
Description And Operation
>>
Parking Aid - Component Location
>>

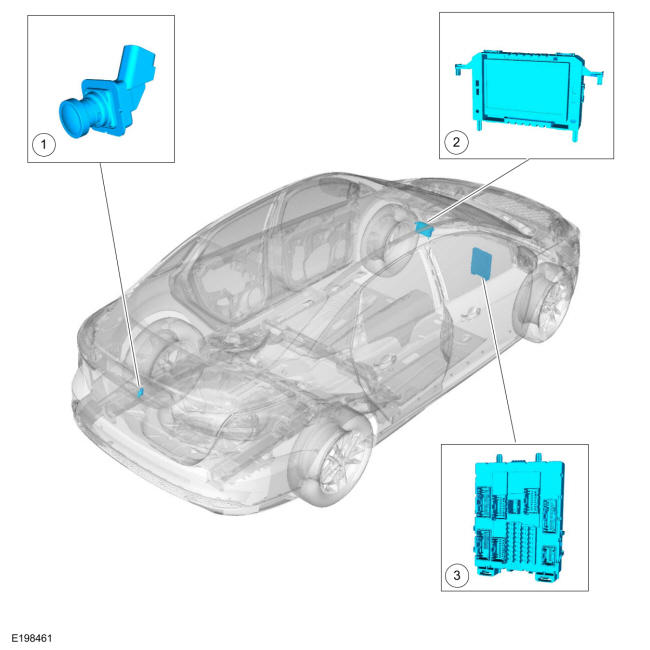

Visual Parking Aid - Component Location
Visual Parking Aid - Component Location
WARNING:
This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Rear parking aid camera
2
Centerstack infotainment display (FDIM shown FCDIM similar)
3
BCM
