Transmission - 2.3L EcoBoost (257kW/350PS) - MI4

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1554 Engine Support Bar
Transmission Jack
Retaining Strap
Wooden Block

• 1.

  Remove the cooling fan and shroud. REFER to: Cooling Fan Motor and Shroud

• 2.

  Remove the battery tray. REFER to: Battery Tray

• 3.

  Remove the wiring retainers and the nuts and remove the battery tray support bracket.

Courtesy of FORD MOTOR COMPANY

• 4.

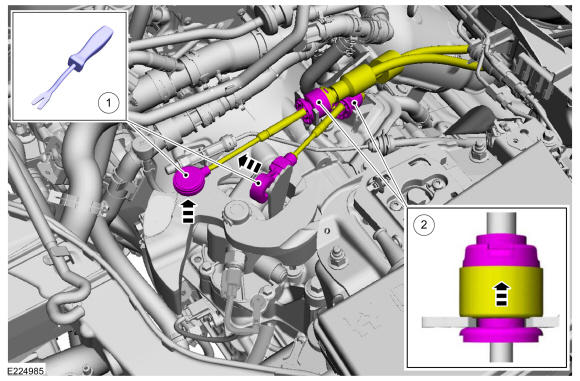

  Disconnect the gearshift cables.

Courtesy of FORD MOTOR COMPANY

• 5.

  Remove the bell housing bolts.

Courtesy of FORD MOTOR COMPANY

• 6.

  Disconnect the electrical connector, wiring retainer and remove the bolt and the ground strap.

Courtesy of FORD MOTOR COMPANY

• 7.

  If equipped, remove the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

• 8.

  Position aside the wiring harness, remove the retainer nuts and brackets

Courtesy of FORD MOTOR COMPANY

• 9.

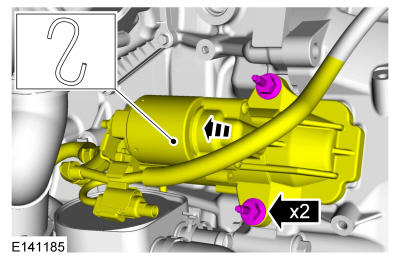

  Remove the bolts and position aside the starter.

Courtesy of FORD MOTOR COMPANY

• 10.

  Disconnect and position aside the transmission breather tube.

Courtesy of FORD MOTOR COMPANY

• 11.

  If equipped. Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

• 12.

  Remove the PTU. REFER to: Power Transfer Unit

• 13.

  Remove the retaining nuts and the catalytic converter bracket.

Courtesy of FORD MOTOR COMPANY

• 14.

  Position aside the PTU cooling hoses.

Courtesy of FORD MOTOR COMPANY

• 15.

  Remove the LHF wheel and tire. REFER to: Wheel and Tire

• 16.

  If equipped. Remove the LHF inner fender splash shield and retainers.

Courtesy of FORD MOTOR COMPANY

• 17.

  Remove the LHF inner splash shield and brake air duct cooler tube.

Courtesy of FORD MOTOR COMPANY

• 18.

  Remove the ECM cover and retainers.

Courtesy of FORD MOTOR COMPANY

• 19.

  Disconnect the ECM and position the harness aside.

Courtesy of FORD MOTOR COMPANY

• 20.

  Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

• 21.

  Remove the LH front halfshaft. REFER to: Front Halfshaft LH

• 22.

  Remove the lower control arm shield and push pin.

Courtesy of FORD MOTOR COMPANY

• 23.

  Remove the bell housing bolts.

Courtesy of FORD MOTOR COMPANY

• 24.

  Remove the bell housing bolts.

Courtesy of FORD MOTOR COMPANY

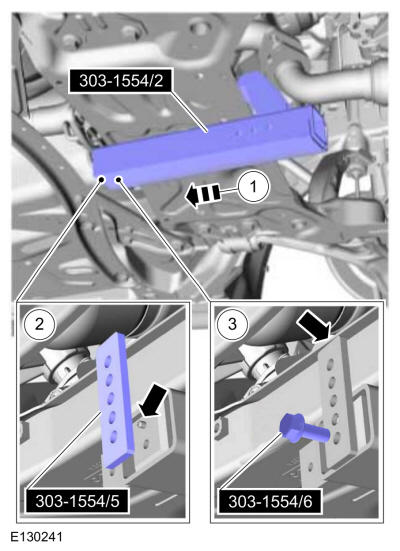

• 25.


  NOTE: Use caution when lowering the vehicle after the special tool is installed. If the vehicle is lowered onto the special tool, damage to the special tool or the vehicle can occur.

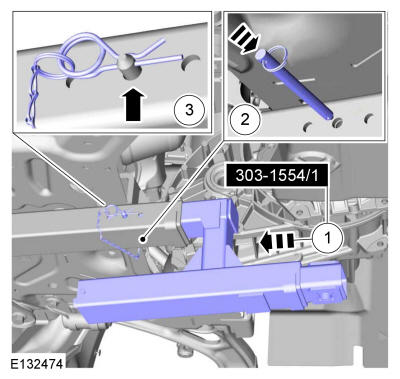

  Install the special tool and support the engine. Install Special Service Tool: 303-1554 Engine Support Bar.

Courtesy of FORD MOTOR COMPANY

• 26.


  NOTE: Use caution when lowering the vehicle after the special tool is installed. If the vehicle is lowered onto the special tool, damage to the special tool or the vehicle can occur.

  Install the special tool and support the engine. Install Special Service Tool: 303-1554 Engine Support Bar.

Courtesy of FORD MOTOR COMPANY

• 27.


  NOTE: Use caution when lowering the vehicle after the special tool is installed. If the vehicle is lowered onto the special tool, damage to the special tool or the vehicle can occur.

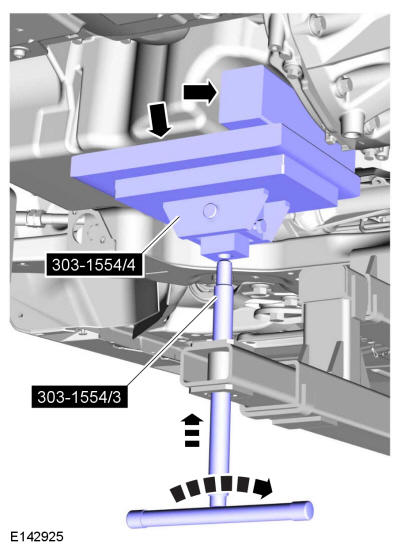

  Install the special tool and support the engine. Install Special Service Tool: 303-1554 Engine Support Bar. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

• 28.

  Adjust the special tool.

Courtesy of FORD MOTOR COMPANY

• 29.

  Remove the bolt and the transmission support insulator.

Courtesy of FORD MOTOR COMPANY

• 30.

  Remove the bolts and the transmission support insulator bracket.

Courtesy of FORD MOTOR COMPANY

• 31.


  NOTE: Make sure that all openings are sealed.

  Disconnect the clutch hydraulic tube.

Courtesy of FORD MOTOR COMPANY

• 32.

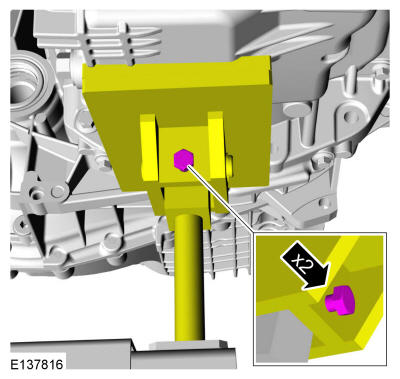

  Install the following items:
  • Use the General Equipment: Transmission Jack
  • Use the General Equipment: Wooden Block
  • Use the General Equipment: Retaining Strap

Courtesy of FORD MOTOR COMPANY

• 33.

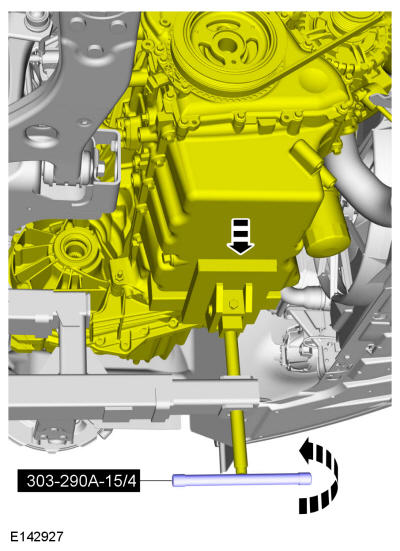

  Lower the powertrain. Use Special Service Tool: 303-1554 Engine Support Bar.

Courtesy of FORD MOTOR COMPANY

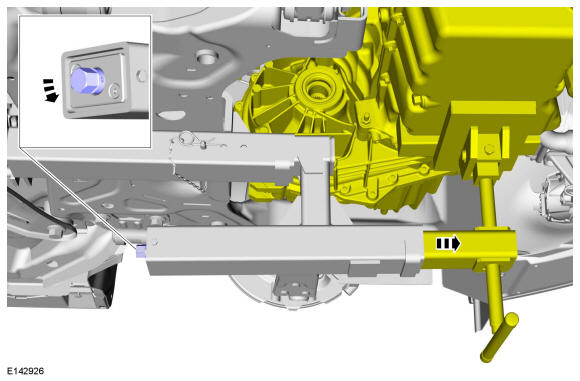

• 34.

  Position the powertrain forward. Use Special Service Tool: 303-1554 Engine Support Bar.

Courtesy of FORD MOTOR COMPANY

• 35.

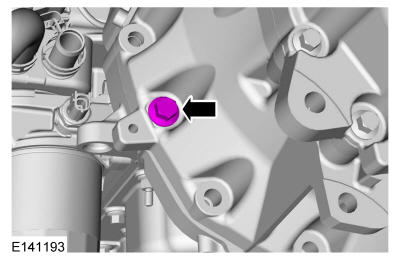

  Remove the bell housing bolt.

Courtesy of FORD MOTOR COMPANY

• 36.

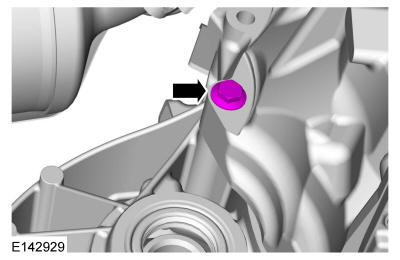

  Remove the bell housing bolt.

Courtesy of FORD MOTOR COMPANY

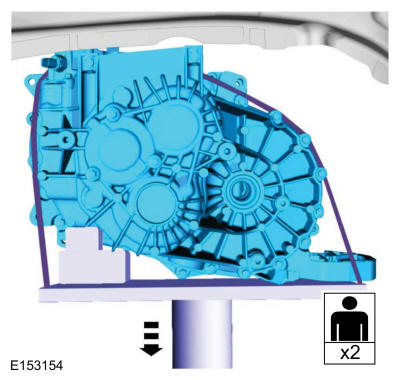

• 37.


  NOTE: The angles of transmission will need to be adjusted as lowered.

  Remove the transmission.

Courtesy of FORD MOTOR COMPANY
