Selector Mechanism: Installation

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

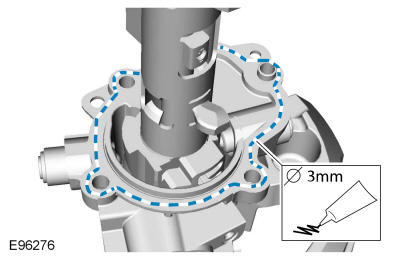

NOTE: Make sure that the mating faces are clean and free of foreign material.

Apply the sealant.

Material: Motorcraft® Gasket Maker / TA-16 (WSK-M2G348-A5)

Courtesy of FORD MOTOR COMPANY

2.
- 1.

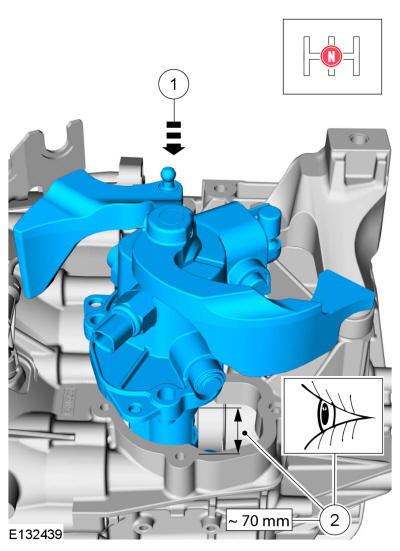

  NOTE: Make sure that no components catch.

  Set the manual shift lever to the neutral (N) position. Visual check.

Courtesy of FORD MOTOR COMPANY

3.
- 1.

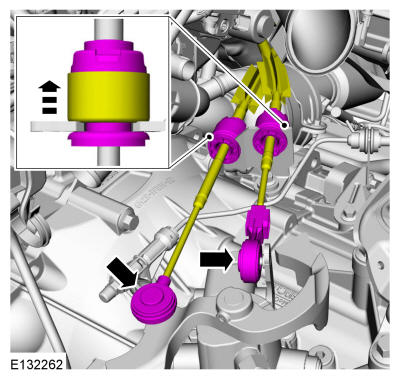

  Set the manual shift lever to the neutral (N) position. Turn the component CCW through 90 degrees.
- 2.

  NOTE: Make sure that no components catch.

  Push the selector mechanism to full down position.

Courtesy of FORD MOTOR COMPANY

4.

Install the bolts.
Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

5.

install the gearshift cables on the transmission and adjust the gearshift cable. REFER to: Gearshift Cable Adjustment - 5-Speed Manual Transmission - MTX75

Courtesy of FORD MOTOR COMPANY

6.

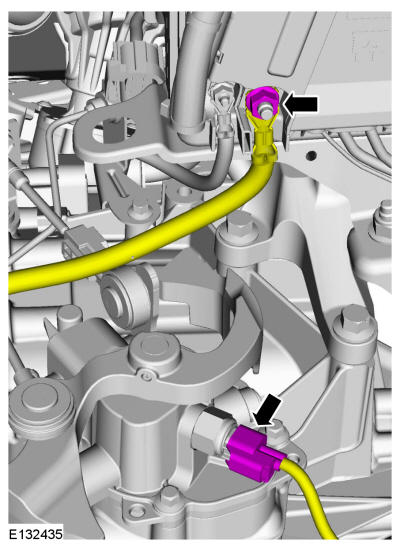

Connect the electrical connector, install the harness and the nut.
Torque: 18 lb.ft (24 Nm)

Courtesy of FORD MOTOR COMPANY

7.

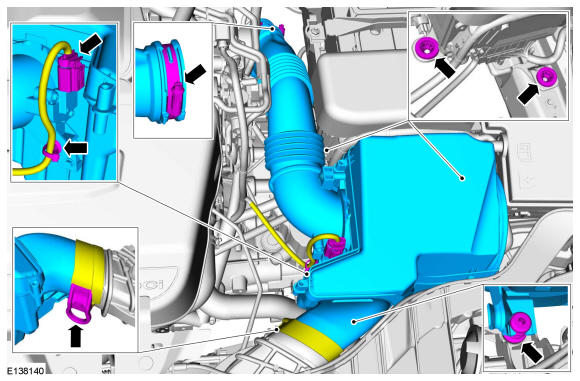

Install the air cleaner assembly.
- Install the air cleaner assembly and connect the air cleaner inlet tube.
- Connect the electrical connector and attach the wiring harness retainer.
- Connect the air cleaner outlet pipe and tighten the clamp.

Courtesy of FORD MOTOR COMPANY

8.

Refer to: Battery Disconnect and Connect
