Selector Mechanism - 2.3L EcoBoost (257kW/350PS) - MI4: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

Disconnect the battery. REFER to: Battery Disconnect and Connect

2.

Remove the air cleaner assembly.
- Loosen the clamp and position aside the air cleaner outlet pipe from the air cleaner.
- Disconnect the electrical connector and detach the wiring harness retainer.
- Disconnect the air cleaner inlet tube and remove the air cleaner assembly.

Courtesy of FORD MOTOR COMPANY

3.

Position aside the wiring harness.
- Detach the retainer, disconnect the electrical connector and position aside the wiring harness.
- Disconnect the electrical connector and position aside the wiring harness.

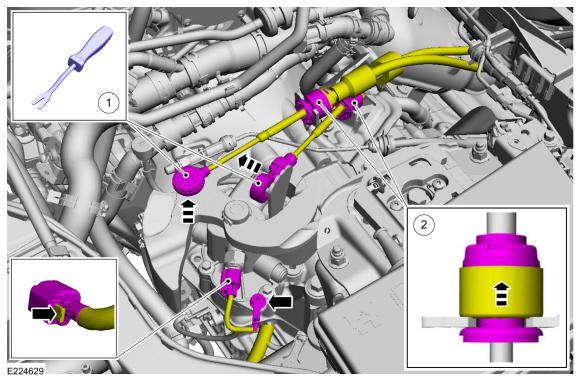

- Slide the locking tab and disconnect the selector lever cables from the transmission controller arm.

Courtesy of FORD MOTOR COMPANY

4.

Set the manual shift lever in the neutral (N) position.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

6.

Remove the selector mechanism.
- 1.

  Turn the component CW through 90 degrees.
- 2.

  NOTE: Make sure that no components catch.

  Remove the selector mechanism.

Courtesy of FORD MOTOR COMPANY
