Roll Restrictor RH: Removal

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

2.
- 1.

  Remove the air deflector.
- 2.

  Remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

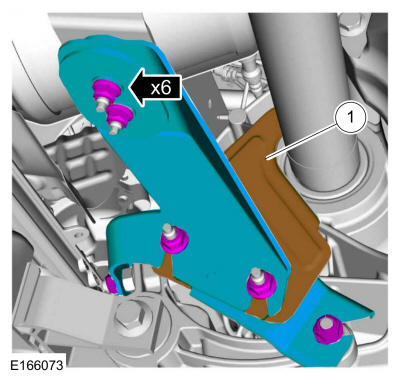

3.

Remove the 6 nuts and the catalytic converter support bracket.
- 1.

  Remove the inspection cover.

Courtesy of FORD MOTOR COMPANY

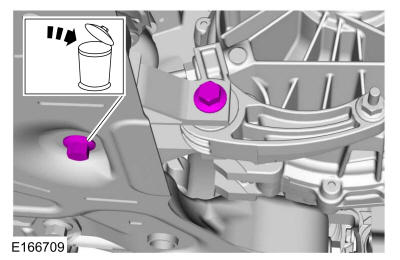

4.

Remove the bolts.

Courtesy of FORD MOTOR COMPANY

5.

Remove the roll restrictor.
- 1.

  Remove the studbolt.
- 2.

  Remove the studbolt, the bolt and the roll restrictor.

Courtesy of FORD MOTOR COMPANY
