Roll Restrictor RH: Installation

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

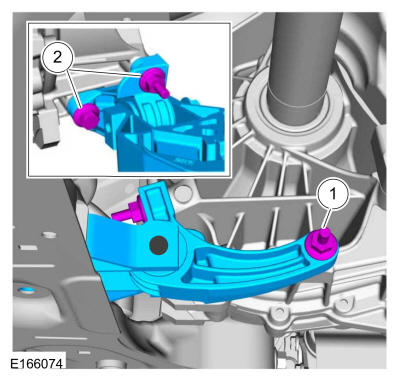

1.

Install the roll restrictor.
- 1.

  Install the roll restrictor and the studbolt.
  Torque: 59 lb.ft (80 Nm)
- 2.

  Install the studbolt, the bolt and tighten.
  Torque: 59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

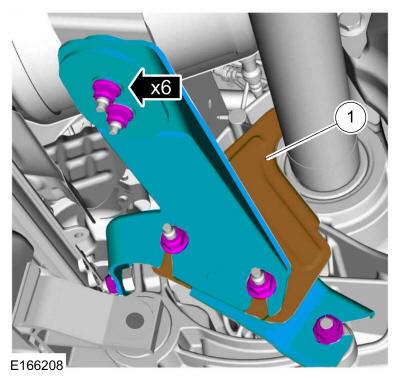

2.
- 1.

  Install the inspection cover. Install the catalytic converter support bracket and the nuts.
  Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

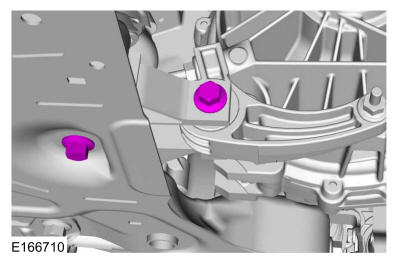

3.

NOTE: Bracket not shown.

Install the bolts.

Torque: 92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  Install the underbody shield.
- 2.

  Install the air deflector.

Courtesy of FORD MOTOR COMPANY
