Roll Restrictor RH - 2.3L EcoBoost (257kW/350PS) - MI4: Installation
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Install the roll restrictor.

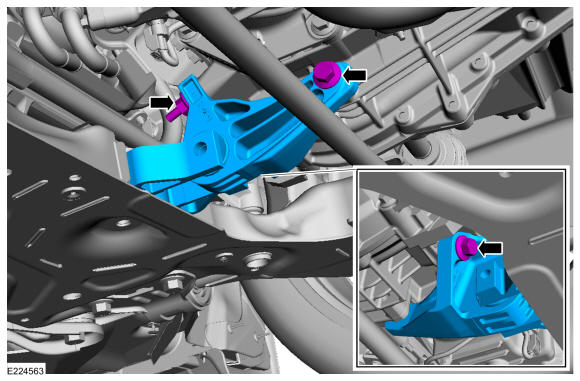

- 1.
Install the roll restrictor and the forward studbolt.Torque: 59 lb.ft (80 Nm)
- 2.
Install the studbolt, the bolt and tighten.Torque: 59 lb.ft (80 Nm)
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Install the underbody shield.
 Courtesy of FORD MOTOR COMPANY
|
