Input Shaft Seal: Installation

WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

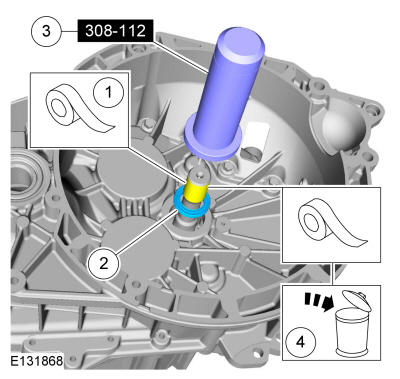

- 1.

  NOTE: Use adhesive tape to cover the input shaft splines to prevent damage to the input shaft seal.

  Apply tape to the splines to protect the seal. Use the General Equipment: Adhesive Tape
- 2.

  Position a new seal on the input shaft in the clutch housing.
- 3.

  Using the special tool, install the seal. Use Special Service Tool: 308-112 Installer, Output Drive Flange Seal.
- 4.

  Remove and discard the tape.

Courtesy of FORD MOTOR COMPANY

2.

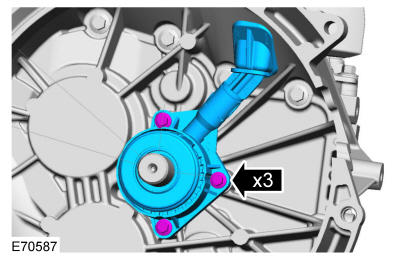

Install the clutch slave cylinder and tighten the bolts.
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
