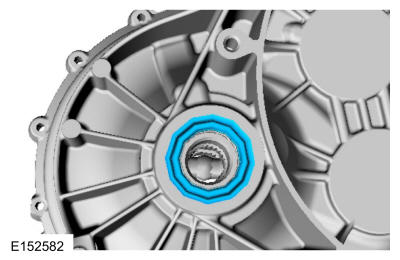

Halfshaft Seal RH: Removal
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions
- 2.
With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview
- 4.
Remove the TC outline pipe.- 1.
Remove the TC outlet pipe mounting bracket bolts.
- 2.
Loosen the TC outlet pipe clamps and remove the TC outlet pipe.
- 1.
- 6.NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.
Remove the RH lower control arm nut and bolt, separate the lower control arm from the steering knuckle.
- 7.
If equipped. Remove the underbody shield.- 1.

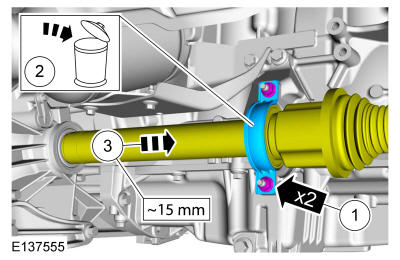

Remove the nuts.
- 2.
Remove the intermediate shaft bearing retaining cap.
- 3.
Pull outward and position aside the intermediate shaft.
- 1.
