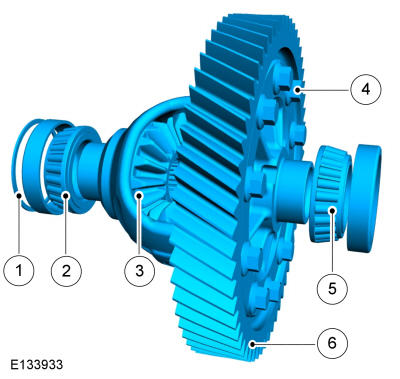

Location of components: Differential
WARNING: This page is about a different car, the 2016 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Shim |
| 2 |
Clutch housing taper roller bearing |
| 3 |
Differential |
| 4 |
Ring gear bolts |
| 5 |
Transmission housing taper roller bearing |
| 6 |
Ring gear |
The differential runs on taper roller bearings and is pre-loaded with the aid of an adjusting shim in the clutch housing.
