Parking Aid

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Parking Aid Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR COMPANY

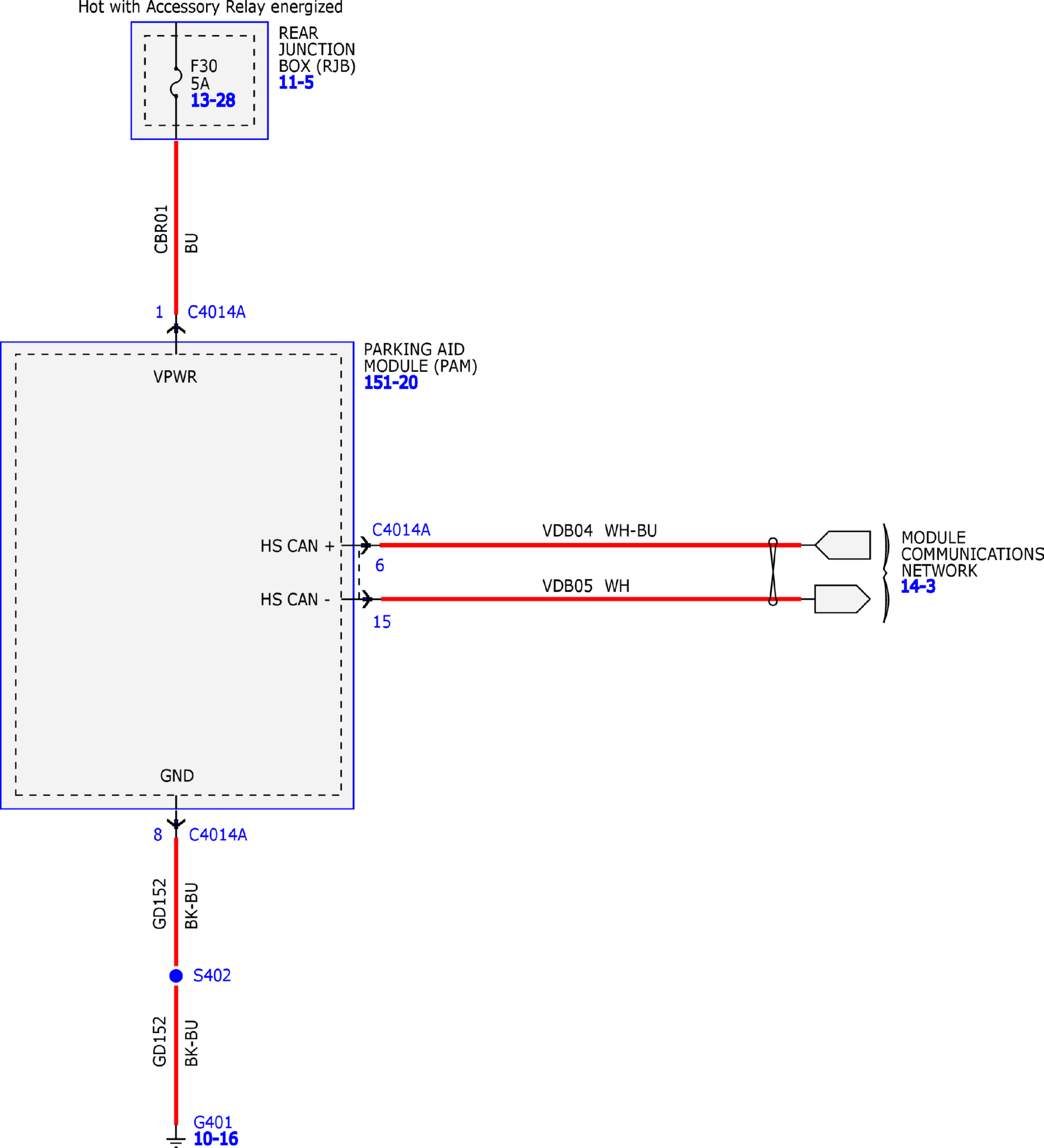

Fig 2: Parking Aid Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR COMPANY

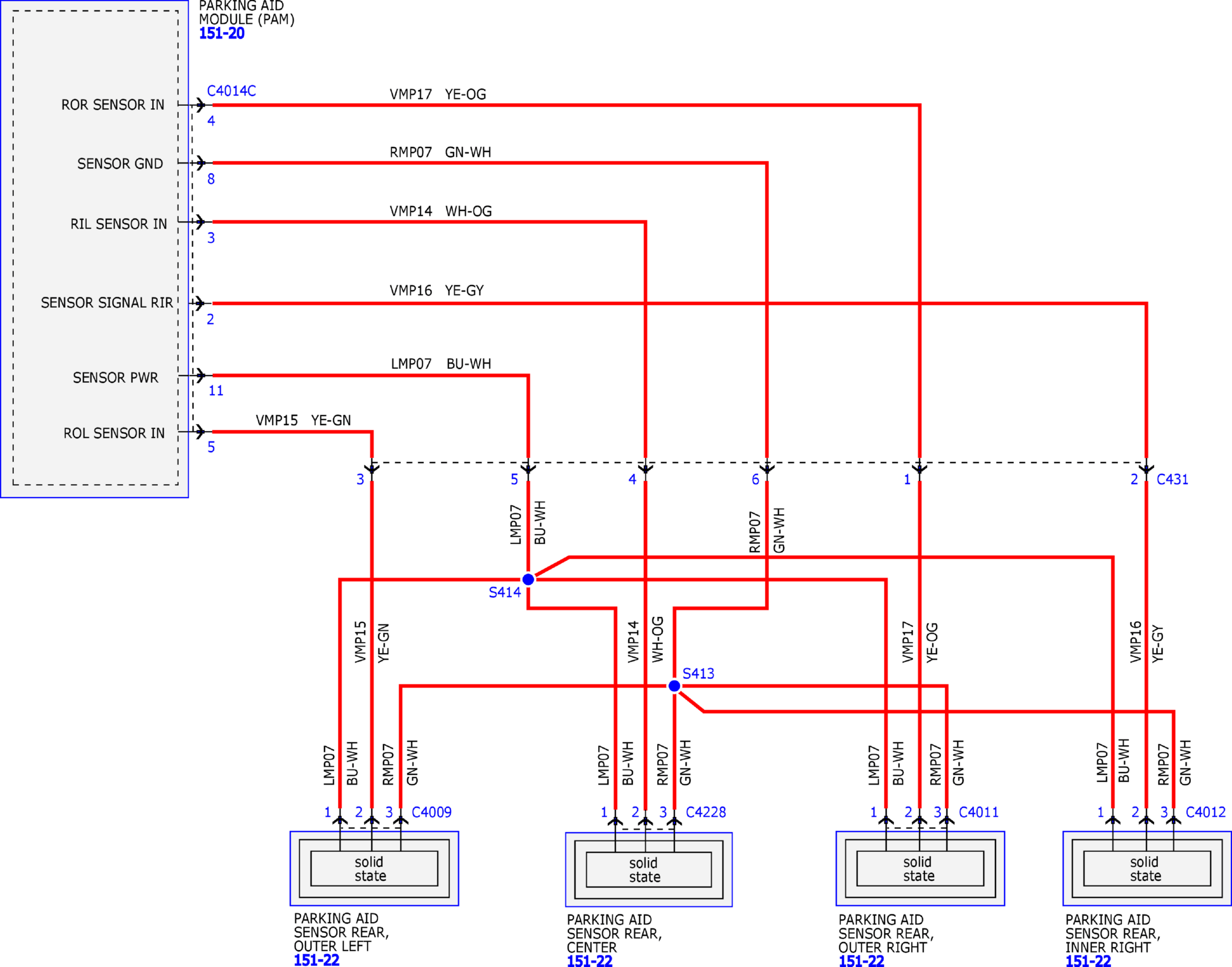

Fig 3: Parking Aid Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR COMPANY
