Fuel Tank Draining
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM | |
|---|---|
Draining
WARNING:
Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION
. Failure to follow this instruction may result in serious personal injury.
- 2.
Disconnect the battery ground cable. REFER to: Battery Disconnect and Connect .
- 3.NOTE: The supplement refueling adapter is located in the luggage compartment.

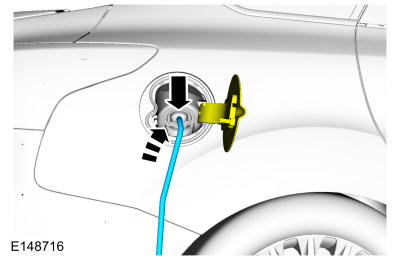

Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel (capless) fuel tank filler pipe.
- 4.
Attach the Fuel Tanker to the fuel drain tube and drain as much fuel as possible from the fuel tank filler pipe.Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
- 5.NOTE: Some residual fuel may remain in the fuel tank filler pipe. Carefully drain into a suitable container.

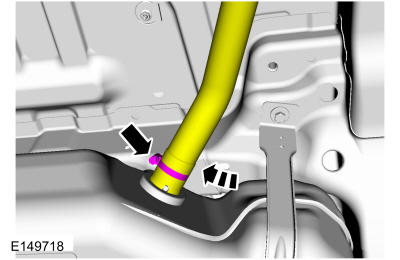

Release the clamp and remove the fuel tank filler pipe hose from the fuel tank.
- 6.

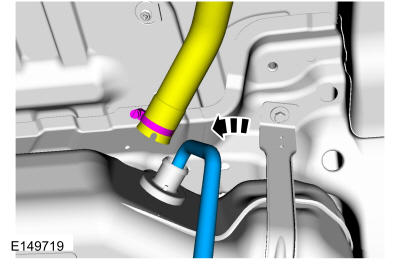

Insert the fuel drain tube into the fuel tank inlet spout, attach the Fuel Storage Tanker and drain as much fuel as possible from the fuel tank.
