Fuel System Pressure Release

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Pressure release

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

1.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

2.

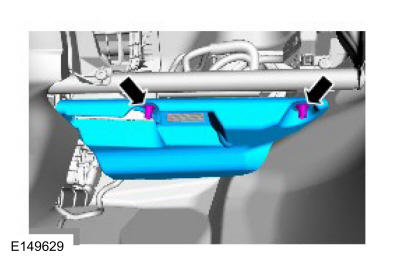

Remove the 2 instrument panel insulator retainers and the instrument panel insulator.

GFD63157

Courtesy of FORD MOTOR COMPANY

3.

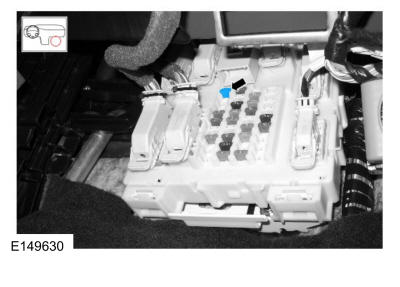

NOTE: The Fuel Pump (FP) control module fuse is located in the Body Control Module (BCM), location F56.

Remove the Fuel Pump (FP) control module fuse.

GFD63158

Courtesy of FORD MOTOR COMPANY

4.

NOTE: A message center warning display 'engine malfunction service now' may display on the Instrument Panel Cluster (IPC). Reset the message center by pressing the OK button on the steering wheel controls.

Start the engine and allow it to idle until it stalls.

5.

After the engine stalls, crank the engine for approximately 20 seconds to make sure the fuel system pressure has been released.

6.

Turn the ignition switch to the OFF position.

7.

When fuel system service is complete, install the Fuel Pump (FP) control module fuse.

8.

NOTE: It may take more than one key cycle to pressurize the fuel system.

Cycle the ignition key and wait 3 seconds to pressurize the fuel system. Check for leaks before starting the engine.

9.

Install the instrument panel insulator and retainers.

GFD63157

Courtesy of FORD MOTOR COMPANY
