Valve Springs: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Install the valve collet, using some multi-purpose grease and a small screwdriver.

NOTE: Check the seating of the valve collet.

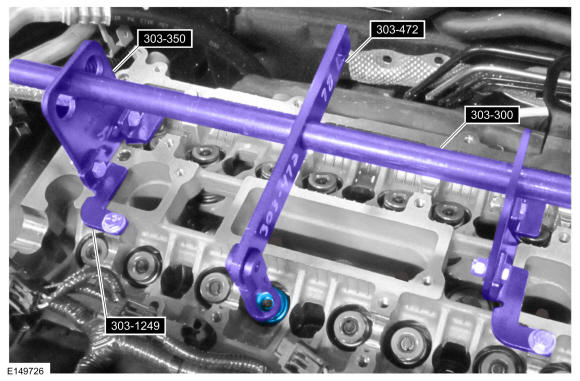

Using the special tools, install the valve springs.

Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor, 303-350 (T89P-6565-A) Compressor, Valve Spring, 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor, 303-1249 Valve Spring Compressor.

Material

: Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

Courtesy of FORD MOTOR COMPANY

2.

Disconnect the compressed air supply.

3.

Install the following items:
- Install the valve tappets. REFER to: Valve Tappets .
- Install the spark plugs. REFER to: Spark Plugs .
