Valve Cover: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

1.

Remove the ignition coil-on-plugs. REFER to: Ignition Coil-On-Plug .

2.

Disconnect the VCT oil control solenoid electrical connectors.

GFD61161

Courtesy of FORD MOTOR COMPANY

3.

Disconnect the CMP sensor electrical connectors.

GFD61162

Courtesy of FORD MOTOR COMPANY

4.

Detach the wiring harness retainers.

GFD61163

Courtesy of FORD MOTOR COMPANY

5.

Disconnect the quick release coupling fuel supply tube. REFER to: Quick Release Coupling .

GFD61164

Courtesy of FORD MOTOR COMPANY

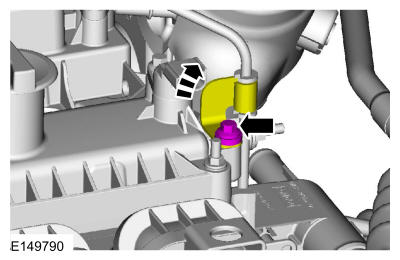

6.

Remove the bolt, position the fuel tube clamp aside.

GFD61165

Courtesy of FORD MOTOR COMPANY

7.

Remove the oil level indicator.

GFD61166

Courtesy of FORD MOTOR COMPANY

8.

If equipped. Remove the engine appearance cover mounting ball stubs.

GFD61167

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Discard the valve cover gasket.

Loosen the fasteners and remove the valve cover.

GFD61168

Courtesy of FORD MOTOR COMPANY

10.

NOTE: The Variable Camshaft Timing (VCT) solenoid seals should only be replaced if they are damaged.

Inspect the VCT oil control solenoid seals for damaged. If damaged, using the special tools, remove the VCT oil control solenoid seals and discard.

Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

GFD61169
