Oil Pump: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

Clean the oil pump and cylinder block mating surfaces.
Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

2.

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

3.

Install the oil pump and tighten the bolts in sequence shown in illustration in 2 stages.
Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

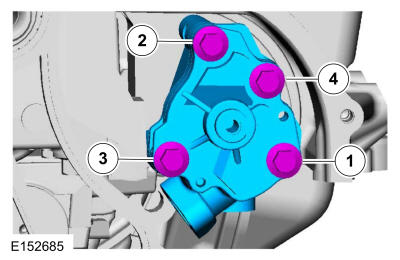

Fig 1: Oil Pump Bolts Tightening Sequence

Courtesy of FORD MOTOR COMPANY

4.

Install the oil pump sprocket and bolt.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

5.
- 1.

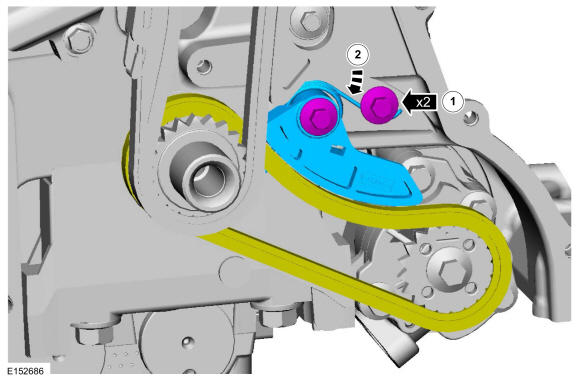

  Install the tensioner and the 2 shoulder bolts.
  Torque

  : 89 lb.in (10 Nm)
- 2.

  Push the tensioner spring down and position the spring under the shoulder bolt.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Install a new gasket.

Install the oil pump screen and pickup tube and the bolts.

Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

7.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces to sealant.

Clean and inspect all mating surfaces.

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

8.

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a 3 mm (0.19 in) bead of silicone sealant.

Material

: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

9.

NOTE: Do not tighten the oil pan bolts at this time.

Install the oil pan and the bolts finger-tight.

Courtesy of FORD MOTOR COMPANY

10.

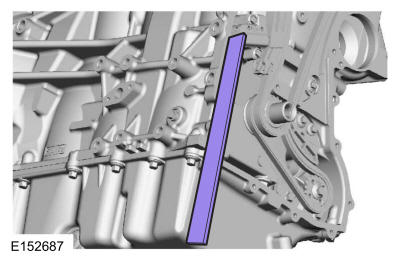

Align the front surface of the oil pan flush with the front surface of the engine block.
Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY

11.

Tighten the oil pan bolts in sequence shown in illustration.
Torque

: 177 lb.in (20 Nm)

Fig 2: Oil Pan Bolts Tightening Sequence

Courtesy of FORD MOTOR COMPANY

12.

Install the engine-to-transmission bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

13.

Install the oil pan-to-transmission bolt.
Torque

: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

14.

NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing the oil filter.

Install a new engine oil filter.

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 180°

Courtesy of FORD MOTOR COMPANY

15.

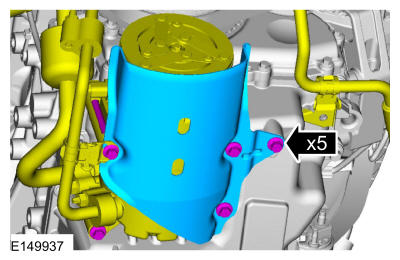

Position back the A/C compressor, install the compressor shield and the bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

16.

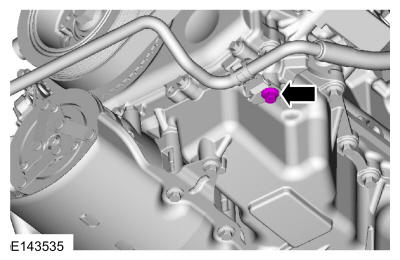

Install the A/C line bracket bolt.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

17.

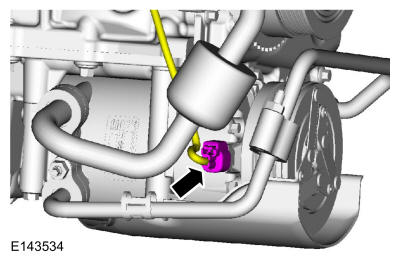

Connect the A/C compressor electrical connector.

Courtesy of FORD MOTOR COMPANY

18.

Install the engine front cover. REFER to: Engine Front Cover .

19.

Fill the engine with clean engine oil.
Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)
