Intake Manifold: Installation
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
- 1.NOTE: Install new intake manifold gaskets if necessary.
- Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be reused.
- Clean and inspect all of the sealing surfaces of the intake manifold.
- 2.

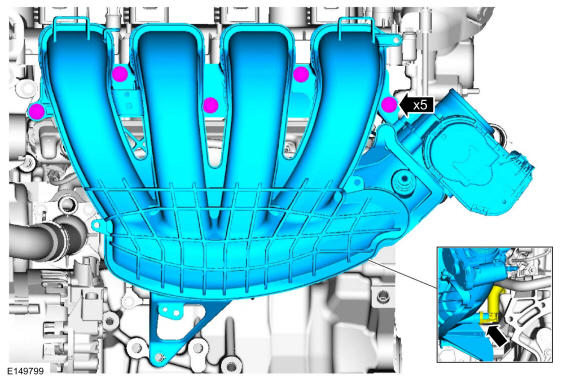

- Connect the crankcase vent oil separator tube.
- Install the intake manifold and the bolts finger tight.
- 6.
Connect the fuel evaporative tube quick release coupling. REFER to: Quick Release Coupling .
- 8.
Install the air cleaner outlet pipe. REFER to: Air Cleaner Outlet Pipe .
- 12.
Connect the battery ground. REFER to: Battery Disconnect and Connect .
