Engine Mount: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .

2.

Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY

3.

Release the tabs and position the degas bottle aside.

Courtesy of FORD MOTOR COMPANY

4.

Remove the bolt and position aside the A/C line.

Courtesy of FORD MOTOR COMPANY

5.

Detach the routing clamp and from the A/C line.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Do not support the engine on the Air Conditioning (A/C) compressor.

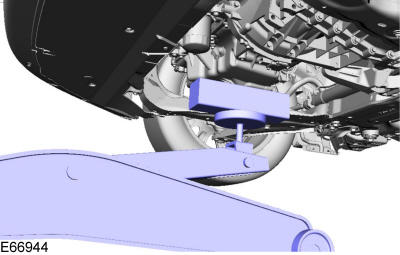

Using a floor jack and wooden block, support the engine.

Use the General Equipment: Trolley Jack

Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

7.
- Remove the engine mount nuts.
- Remove the bolts and the engine mount.

Courtesy of FORD MOTOR COMPANY
