Engine Mount: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.
- Install the engine mount and the nuts.
  Torque

  : 59 lb.ft (80 Nm)
- Install the engine mount bolts.
  Torque

  : 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY

2.

Position back the A/C line and connect the routing clamp.

Courtesy of FORD MOTOR COMPANY

3.

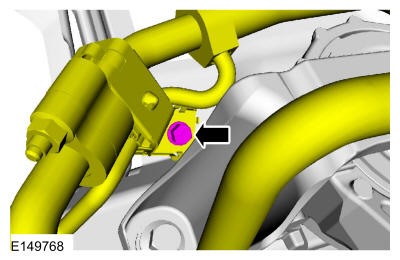

Position back the A/C line and Install the bolt.
Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

4.

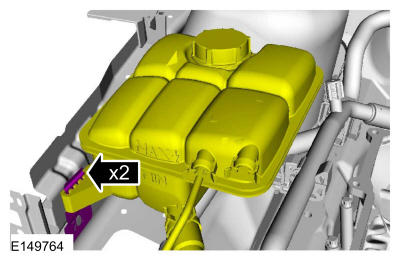

Position back the degas bottle and connect the tabs.

Courtesy of FORD MOTOR COMPANY

5.

Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY
