Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the flexplate or flywheel. REFER to: Flexplate . REFER to: Flywheel .

2.

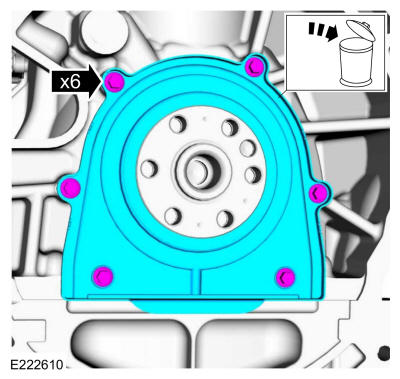

Remove the bolts and the crankshaft rear seal, discard the crankshaft rear seal.

Courtesy of FORD MOTOR COMPANY

3.

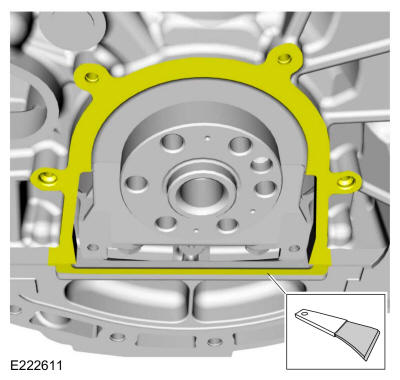

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Clean and inspect the oil pan and cylinder block mating surfaces. REFER to: RTV Sealing Surface Cleaning and Preparation (303-00 Engine System - General Information).

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner / PM-4-A, PM-4-B

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Courtesy of FORD MOTOR COMPANY
