Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

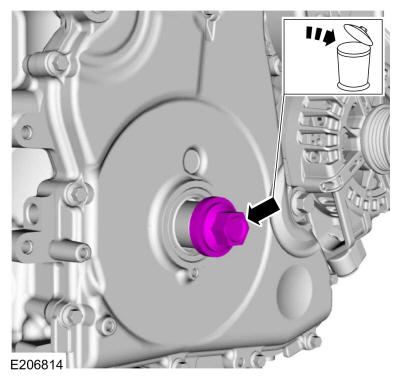

Remove and discard the crankshaft pulley bolt.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: Remove the through-bolt from the special tool.

Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal .

Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.)/XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

3.

Install the crankshaft pulley. REFER to: Crankshaft Pulley .
