Disassembly And Assembly Of Subassemblies: Piston: Assembly

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

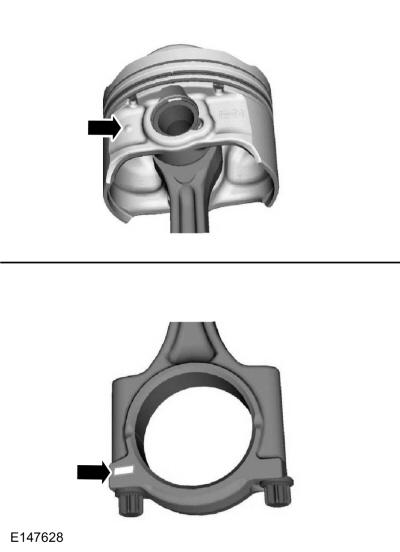

1.

Indicates front of engine.

Courtesy of FORD MOTOR COMPANY

2.

Install the piston to the connecting rod.

Courtesy of FORD MOTOR COMPANY

3.

Lubricate with clean engine oil and install the piston pin.
Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

4.

Install the piston pin retainers.

Courtesy of FORD MOTOR COMPANY

5.

Lubricate with clean engine oil and install the piston rings.
Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil / XO-5W20-QSP (WSS-M2C945-A)

Courtesy of FORD MOTOR COMPANY

6.

NOTE: The upper and lower compression rings are to be fitted with the identification marks on the upper side.

NOTE: Arrows faces the front of the engine.

NOTE: Align the piston rings on the piston.
- 1.

  Upper compression ring gap location.
- 2.

  Lower compression ring gap location.
- 3.

  Upper oil control segment ring gap location.
- 4.

  Expander ring gap location.
- 5.

  Lower oil control segment ring gap location.

Courtesy of FORD MOTOR COMPANY
