Engine Component View

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

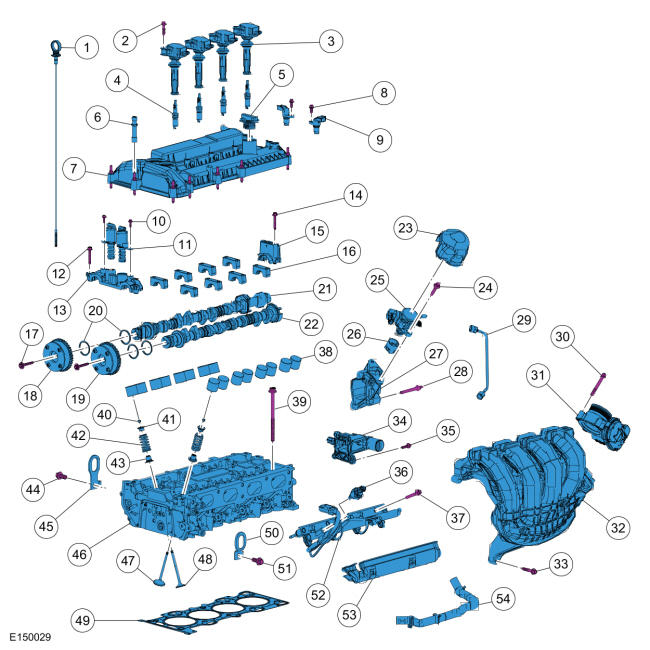

Intake Manifold and Valve Train Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6750	Oil level indicator
2	W500301	Ignition coil-on-plug bolt (4 required)
3	12A366	Ignition coil-on-plug (4 required)
4	12405	Spark plug (4 required)
5	6766	Oil fill cap
6	6N958	Engine appearance cover retainer
7	6M293	Valve cover
8	W701219	Camshaft position (CMP) sensor bolt (2 required)
9	12K073	CMP sensor (2 required)
10	W500213	Variable valve timing (VVT) unit oil control solenoid bolt (2 required)
11	6M280	VVT unit oil control solenoid (2 required)
12	W703383	Camshaft front bearing cap bolt (19 required)
13	6B280	Camshaft front bearing cap
14	W714885	Exhaust camshaft rear bearing cap bolt (2 required)
15	6B284	Exhaust camshaft rear bearing cap
16	6A284	Exhaust camshaft rear bearing cap (8 required)
17	6279	VVT unit bolt (2 required)
18	6C525	Exhaust VVT unit
19	6256	Intake VVT unit
20	6C262	Camshaft seal (4 required)
21	6A272	Exhaust camshaft
22	6A271	Intake camshaft
23	9K540	Fuel injection pump noise insulator shield
24	W503297	Fuel injection pump bolt (2 required)
25	9D376	Fuel injection pump
26	9C587	Fuel injection pump roller tappet
27	9A413	Fuel injection pump cover
28	W714909	Fuel injection pump cover stud bolts (3 required)
29	9J332	High pressure fuel tube
30	W503281	Throttle body (TB) bolt (4 required)
31	9E926	TB
32	9424	Intake manifold
33	W500311	Intake manifold bolt (6 required)
34	8K556	Coolant outlet connector assembly
35	W500015	Coolant outlet connector assembly bolt (4 required)
36	9F972	FRP sensor
37	W500311	Fuel rail bolt (4 required)
38	6500	Valve tappet (16 required)
39	6065	Cylinder head bolt (10 required)
40	6518	Valve spring retainer key (32 required)
41	6514	Valve spring retainer (16 required)
42	6513	Valve spring (16 required)
43	6A517	Valve stem seal (16 required)
44	W500033	Rear engine lift bracket bolt
45	17K004	Rear engine lift bracket
46	6049	Cylinder head
47	6507	Intake valve (8 required)
48	6505	Exhaust valve (8 required)
49	6051	Cylinder head gasket
50	17A084	Front engine lift bracket
51	W500033	Front engine lift bracket bolt
52	9H487	Fuel rail
53	9U550	Fuel rail insulator
54	8A582	Coolant bypass hose

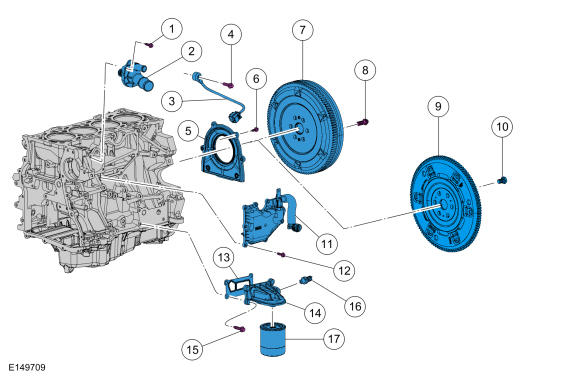

Rear Engine Components Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	W500015	Thermostat housing bolt (3 required)
2	8592	Thermostat housing
3	12A699	Knock sensor (KS) (2 required)
4	W500025	KS bolt (2 required)
5	6K318	Crankshaft rear seal and retainer
6	6N958	Crankshaft rear seal retainer bolt (6 required)
7	6477	Dual mass flywheel
8	6379	Dual mass flywheel bolt (6 required)
9	6375	Flexplate - dual clutch
10	6379	Flexplate bolt (6 required)
11	6A785	PCV oil separator assembly
12	W500214	PCV oil separator assembly bolt (8 required)
13	6A636	Oil filter adapter gasket
14	6884	Oil filter adapter
15	W500225	Oil filter adapter bolt (4 required)
16	9278	Oil pressure switch
17	6714	Oil filter

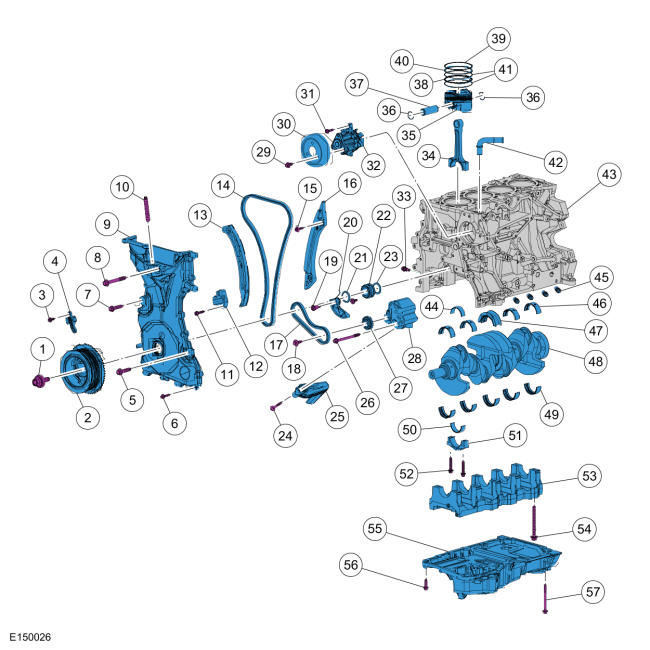

Timing Drive and Lower Engine Components Exploded View

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	6K340	Crankshaft pulley bolt and washer
2	6316	Crankshaft pulley
3	W701219	Crankshaft position (CKP) sensor bolt
4	6C315	CKP sensor
5	W500320	Engine front cover bolt
6	W500215	Engine front cover bolt (17 required)
7	W500311	Engine front cover bolt
8	W500328	Engine front cover bolt (3 required)
9	6C086	Engine front cover
10	W708873	Engine front cover stud (2 required)
11	6K282	Timing chain tensioner bolt (2 required)
12	6K254	Timing chain tensioner
13	6K255	Timing chain tensioner arm
14	6268	Timing chain
15	W703643	Timing chain guide bolt (2 required)
16	6K297	Timing chain guide
17	6A895	Oil pump drive chain
18	W704397	Oil pump drive sprocket bolt
19	W703651	Oil pump drive chain tensioner bolt and spacer
20	6C271	Oil pump drive chain tensioner
21	6378	Diamond washer (only on engines built prior to 12/9/2014)
22	6306	Crankshaft sprocket
23	6378	Diamond washer (only on engines built prior to 12/9/2014)
24	W706282	Oil pump screen and pickup tube bolt (2 required)
25	6622	Oil pump screen and pickup tube
26	W712022	Oil pump bolt (4 required)
27	6652	Oil pump drive sprocket
28	6600	Oil pump
29	W500221	Coolant pump bolt (3 required)
30	8509	Coolant pump pulley
31	W500015	Coolant pump bolt (3 required)
32	8501	Coolant pump
33	W700115	Crankshaft timing hole plug
34	6200	Connecting rod (4 required)
35	6110	Piston (4 required)
36	6140	Piston pin retainer (8 required)
37	6135	Piston pin (4 required)
38	6161	Piston oil control ring (4 required)
39	6150	Piston upper compression rings (4 required)
40	6152	Piston lower compression rings (4 required)
41	6159	Piston oil control rings (8 required)
42	8597	Coolant bypass tube
43	6010	Cylinder block
44	6211	Connecting rod upper bearing (4 required)
45	6K868	Piston oil cooler (4 required)
46	6333	Crankshaft main bearing (4 required)
47	6337	Crankshaft main thrust bearing
48	6303	Crankshaft
49	6A338	Crankshaft lower main bearing (5 required)
50	6211	Connecting rod lower bearing (4 required)
51	6100	Connecting rod cap (4 required)
52	6214	Connecting rod bolt (8 required)
53	9D047	Main bearing beam
54	6345	Main bearing beam bolt (10 required)
55	6675	Oil pan
56	W500224	Oil pan bolt (11 required)
57	W706284	Oil pan bolt (2 required)
