Engine - Overview: Overview
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
The 2.0L Twin Independent Variable Cam Timing (Ti-VCT) Gasoline Direct Injection (GDI) 4-cylinder engine has the following features:
- Dual overhead camshafts
- Four valves per cylinder
- Composite intake manifold
- Aluminum cylinder head
- Gasoline Direct Injection (GDI)
- Twin Independent Variable Cam Timing (Ti-VCT)
- An electronic ignition system with 4 ignition coil-on-plugs
Engine Identification
Always refer to these labels when installation of new parts is necessary or when checking engine calibrations. The engine parts often differ within a CID family. Verification of the identification codes will make sure the correct parts are obtained. These codes contain all the pertinent information relating to the dates, optional equipment and revisions.

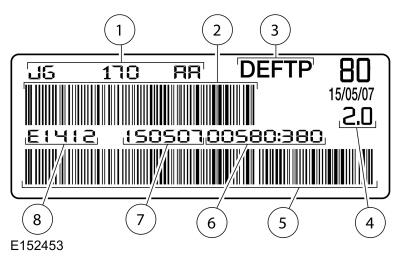

Engine Code Information Label
The engine code information label, located on the front cover, contains the following:
| Item | Description |
|---|---|
| 1 | Engine part number |
| 2 | Bar code |
| 3 | Dearborn engine plant |
| 4 | Engine displacement |
| 5 | Bar code |
| 6 | Bar code |
| 6 | Running number |
| 7 | Engine build date (DDMMYY) |
| 8 | Plant shift line |

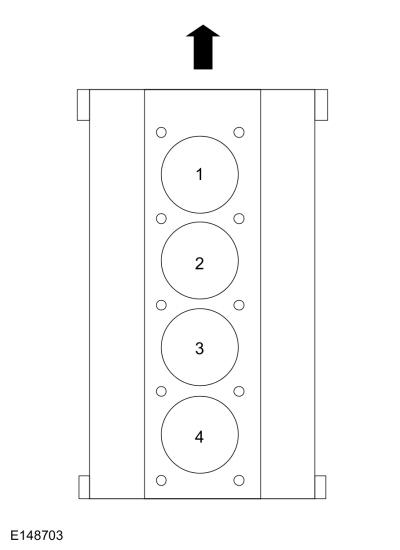

Engine Cylinder Identification

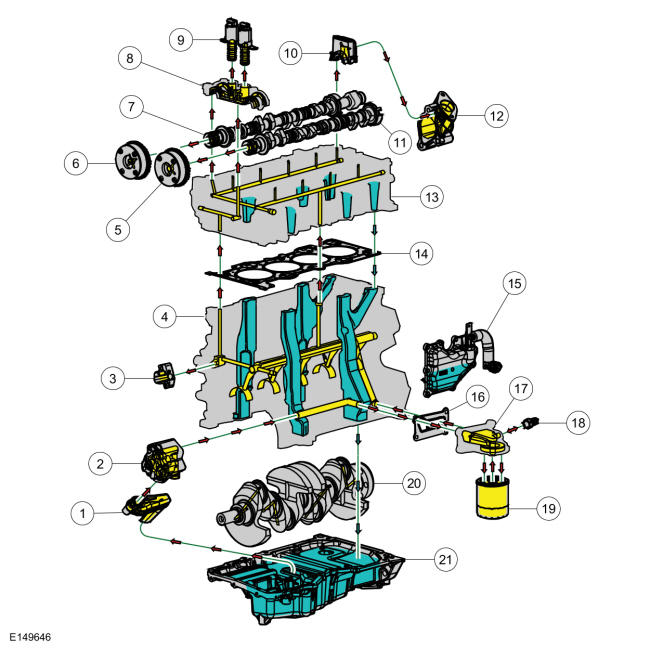

Oil Flow Diagram
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 6622 | Oil pump screen and pickup tube |
| 2 | 6600 | Oil pump |
| 3 | 6K254 | Timing chain tensioner |
| 4 | 6010 | Cylinder block |
| 5 | 6C524 | Intake VCT unit |
| 6 | 6C525 | Exhaust VCT unit |
| 7 | 6A272 | Exhaust camshaft |
| 8 | 6B280 | Camshaft front bearing cap |
| 9 | 6B297 | VCT oil control solenoid |
| 10 | 6B284 | Camshaft rear bearing cap |
| 11 | 6A271 | Intake camshaft |
| 12 | 9A413 | Fuel pump housing |
| 13 | 6049 | Cylinder head |
| 14 | 6051 | Head gasket |
| 15 | 6A785 | Crankcase vent oil separator |
| 16 | 6A636 | Oil filter adapter gasket |
| 17 | 6884 | Oil filter adapter |
| 18 | 9278 | Oil Pressure switch |
| 19 | 6714 | Oil filter |
| 20 | 6303 | Crankshaft |
| 21 | 6675 | Oil pan |
