Brake Pedal and Bracket: Removal
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.
Remove the accelerator pedal. Refer to: Accelerator Pedal .
- 2.NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.
Remove the stoplamp switch. Refer to: Stoplamp Switch .
- 3.

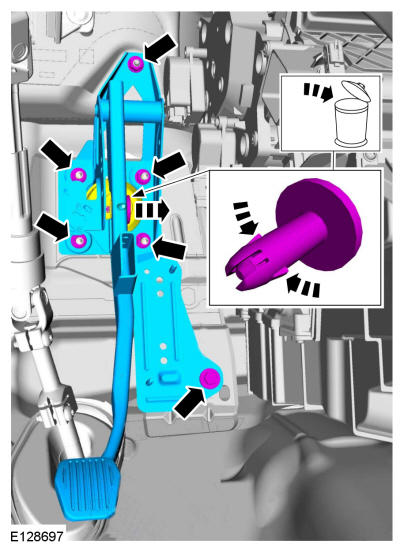

Remove clevis pin, the nuts, the bolts and the brake pedal and bracket assembly. Discard the clevis pin and the fasteners.Torque: 17 lb.ft (22.5 Nm)
