Brake Fluid Reservoir: Removal
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.

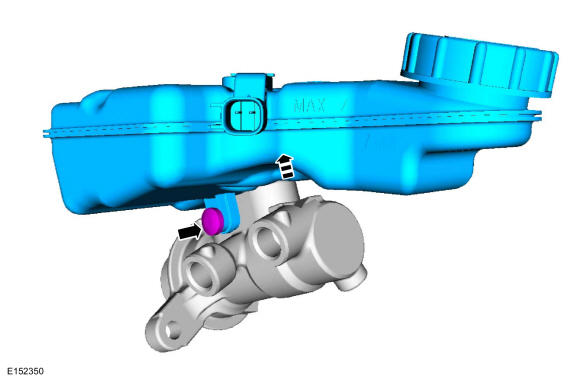

Remove the brake master cylinder. Refer to: Brake Master Cylinder .

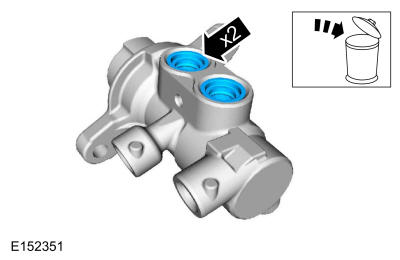

- 4.NOTE: Install new brake fluid reservoir seals. Lubricate the seals with clean, specified brake fluid.
Remove and discard the brake fluid reservoir seals.
Material: Motorcraft ® DOT 4 LV High Performance Motor Vehicle Brake Fluid / PM-20 (WSS-M6C65-A2)
