Synchronizer rings for 3rd/4th gear double synchronization

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

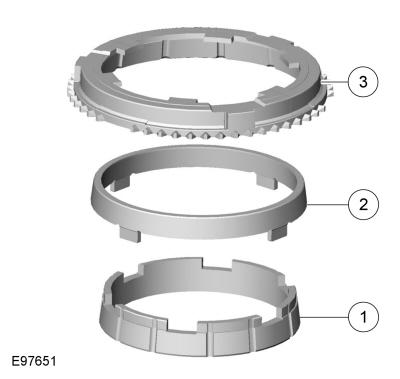

GFD63039Courtesy of FORD MOTOR COMPANY
Item Description
1 Inner synchronizer ring with friction material on the outside
2 Synchronizer cone
3 Outer synchronizer ring with friction material on the inside
