Selector Mechanism: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the air cleaner. Refer to: Air Cleaner .

2.

Remove the battery tray. Refer to: Battery Tray .

3.

Disconnect the wiring retainers, remove the nuts and remove the battery tray support bracket.

Courtesy of FORD MOTOR COMPANY

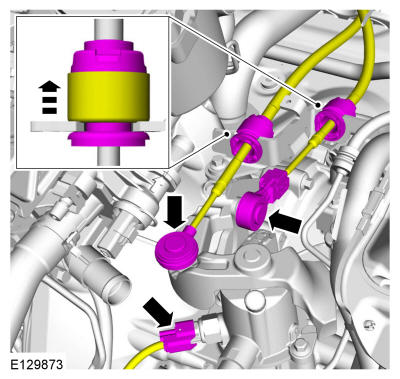

4.

Disconnect the shift cables from the transmission and the shift cable bracket and disconnect the reverse light switch.

Courtesy of FORD MOTOR COMPANY

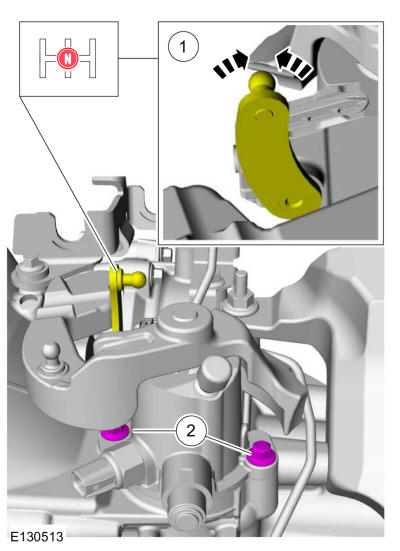

5.

Place the transmission in neutral and remove the bolts.

Courtesy of FORD MOTOR COMPANY

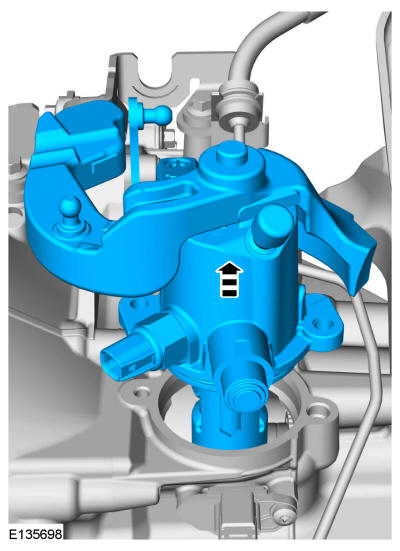

6.

NOTE: Make sure that no components catch.

Remove the selector mechanism from the transmission.

Courtesy of FORD MOTOR COMPANY
