Input Shaft Seal: Removal

WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the transmission. Refer to: Transmission .

2.

Remove the bolts and the clutch slave cylinder.

Courtesy of FORD MOTOR COMPANY

3.

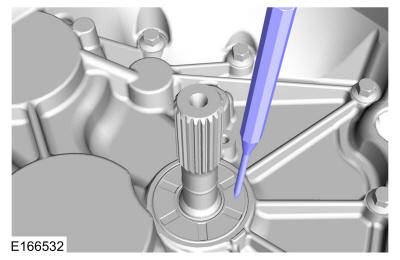

NOTE: Take extra care not to damage the bearing.

Using a punch, pierce the input shaft seal. Use the General Equipment: Center Punch

Courtesy of FORD MOTOR COMPANY

4.

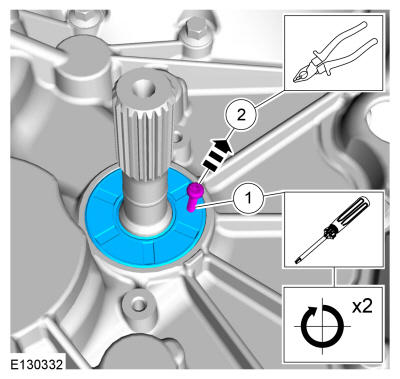

- 1.

  Drive a 2.5 x 15 mm self-tapping screw into the input shaft seal.
- 2.

  Using a pair of pliers, remove the input shaft seal by pulling on the screw.

Courtesy of FORD MOTOR COMPANY
