Reverse Gear Output Shaft: Disassembly
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

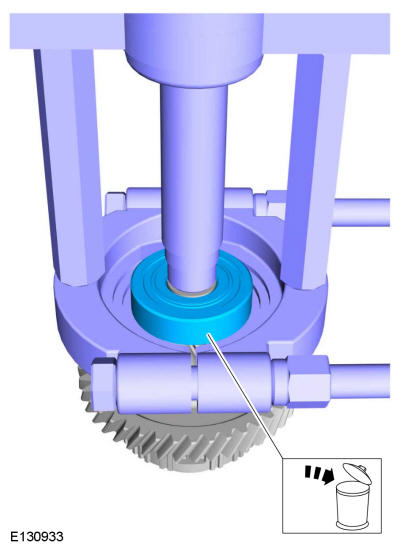

Remove the bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Puller
- 2.

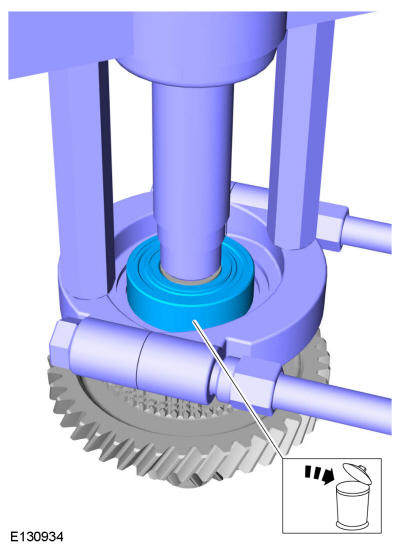

Remove the bearing. Use the General Equipment: Bearing Separator. Use the General Equipment: Puller
- 3.

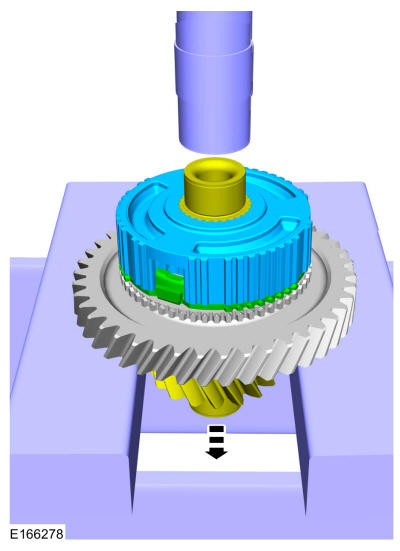

Remove the reverse gear synchronizer ring and the synchronizer body. Use Special Service Tool: 205-D015 (D80L-630-4) Step Plate. Use the General Equipment: Hydraulic Press
