Reverse Gear Output Shaft: Assembly
WARNING: This page is about a different car, the 2015 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

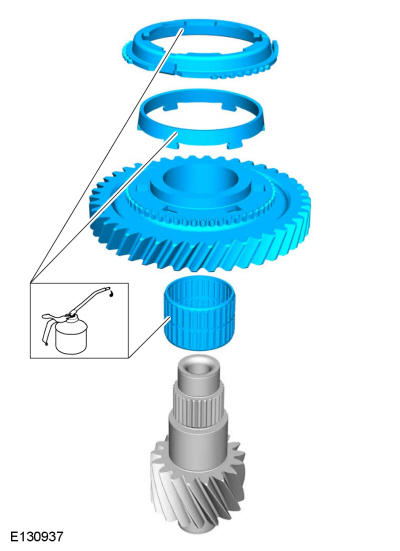

Lubricate the reverse gear friction rings.Material: Motorcraft ® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
- 2.
Install the reverse gear synchronizer ring and the synchronizer body. Make sure the tab on the upper friction ring aligns with the opening in the synchronizer body and the tabs on the lower friction ring fit into the reverse gear. Use Special Service Tool: 308-416 Remover/Installer, Thrust Washer Bearing Cup.
- 3.
Install the bearing. Use Special Service Tool: 307-679 Installer, Countershaft Needle Bearing. Use the General Equipment: Hydraulic Press
- 4.
Install the bearing. Use Special Service Tool: 307-679 Installer, Countershaft Needle Bearing., 205-D016 (D80L-630-5) Step Plate. Use the General Equipment: Hydraulic Press
